Specifications
Up to 50 PSI / 3.5 BAR Steam Pressure
Energy-Efficient Design: Eco Mode for up to 33% Energy Savings
Utilizes External Solenoid with Variable Steam Dial
Equipped with External Long Life Element
Enhanced Safety with 4 Safety Systems
3000DA Steam Gun Complete with a 6’ Steam Hose and Quick Connect Fittings
Features Low Water Indicator Light and Pressure Gauge
Extended Steam Operation: Up to 4 Hours Continuously
Convenient Carrying Handles for Portability

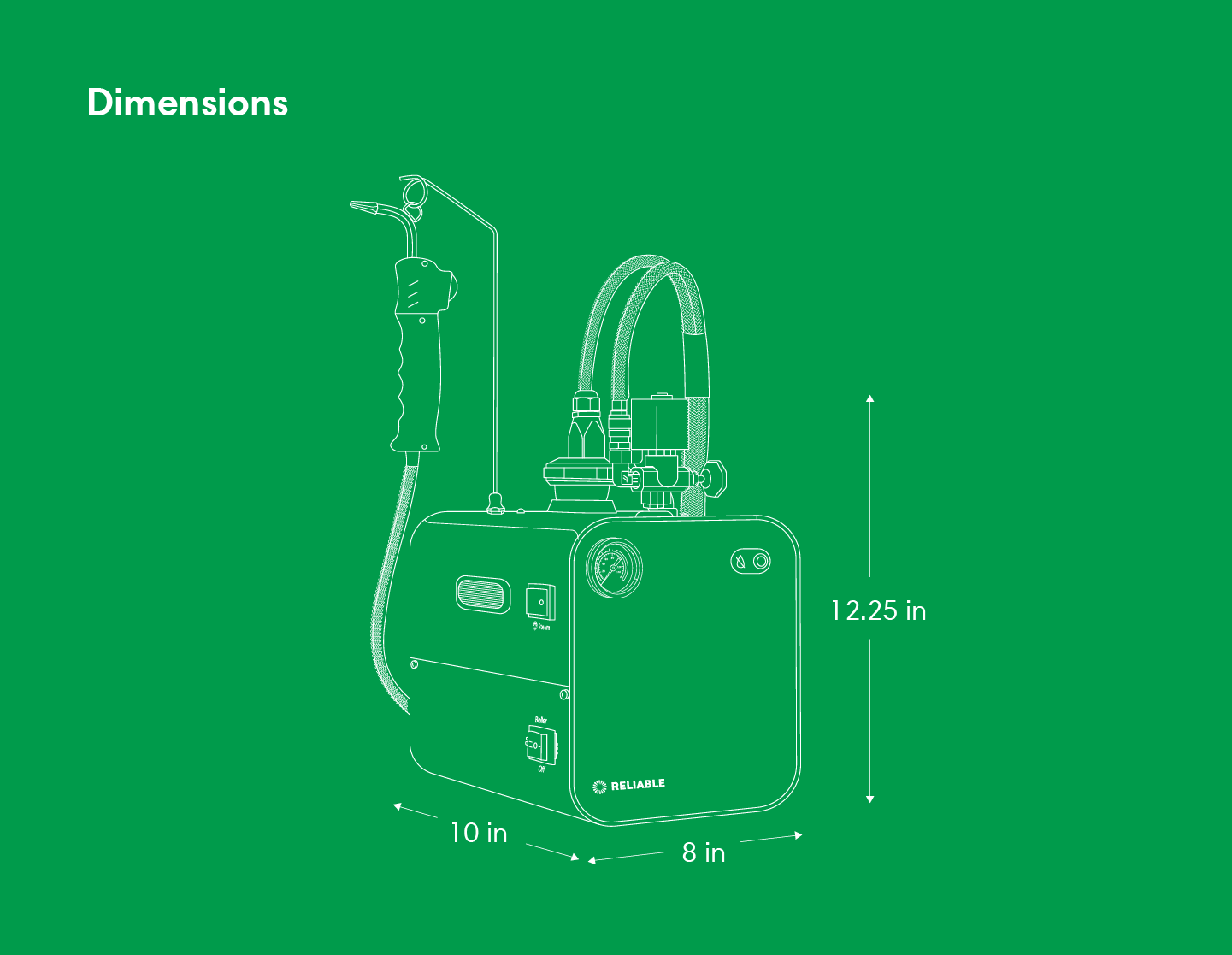

Dimensions
Product Dimensions 8" x 12.25" x 10"
20.3 x 31.1 x 25.4 cm
Box Dimensions 16" x 17" x 12"
40.64 x 43.18 x 30.5 cm
Operation
Electrical 120 V / 10 amps / 60mhz
Boiler Capacity 0.58 GAL / 2.2 L
Water Capacity 0.5 GAL / 1.9 L
Operating Pressure Up to 50 PSI / 3.5 BAR
Steam Temperature 200°F / 93°C
Wattage 1000W
Tank Construction Stainless Steel
Net Weight 12.85 lb / 5.8 kg
Shipping Weight 17.2 lb / 7.8 kg
Electrical Approval cETLus
Warranty Limited 1 year, 2 year boiler tank
Country of Origin Italy

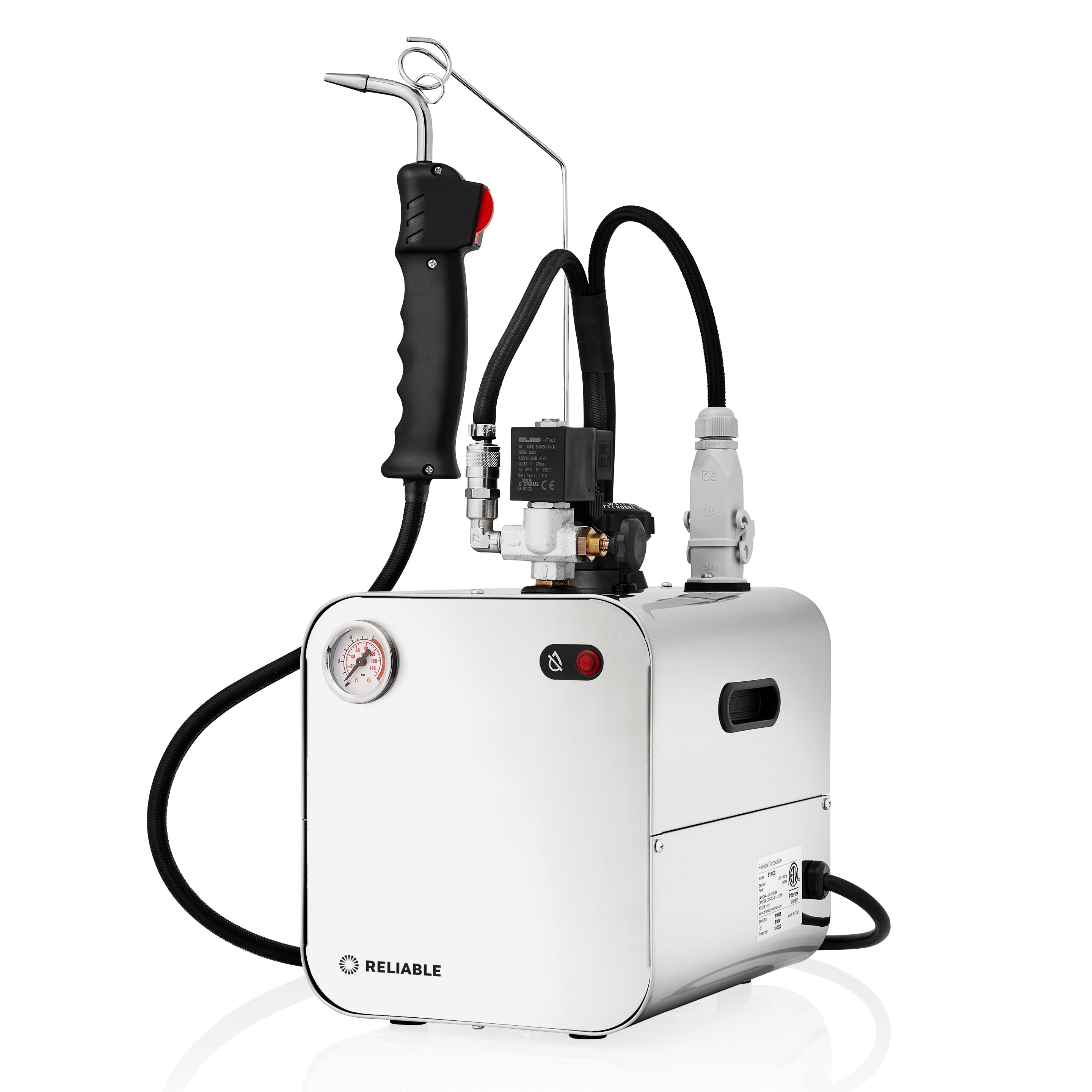

Introducing Eco-Mode in the all new 5100CD dental lab steam cleaner. Eco-Mode will save you up to 33% in energy costs by reducing the energy consumption when the boiler is not being used. Smart for your wallet and smart for the planet.
The 5100CD has an absolute capacity of 2.2L, uses our new external heating element system to maximize the amount of steam available to use and has an operating pressure of 3.5 bar / 50 P.S.I. for maximum cleaning efficiency. The supplied #3000DA steam gun with quick connect functionality and variable steam control provides optimum, focused cleaning power for the toughest jobs.
Features

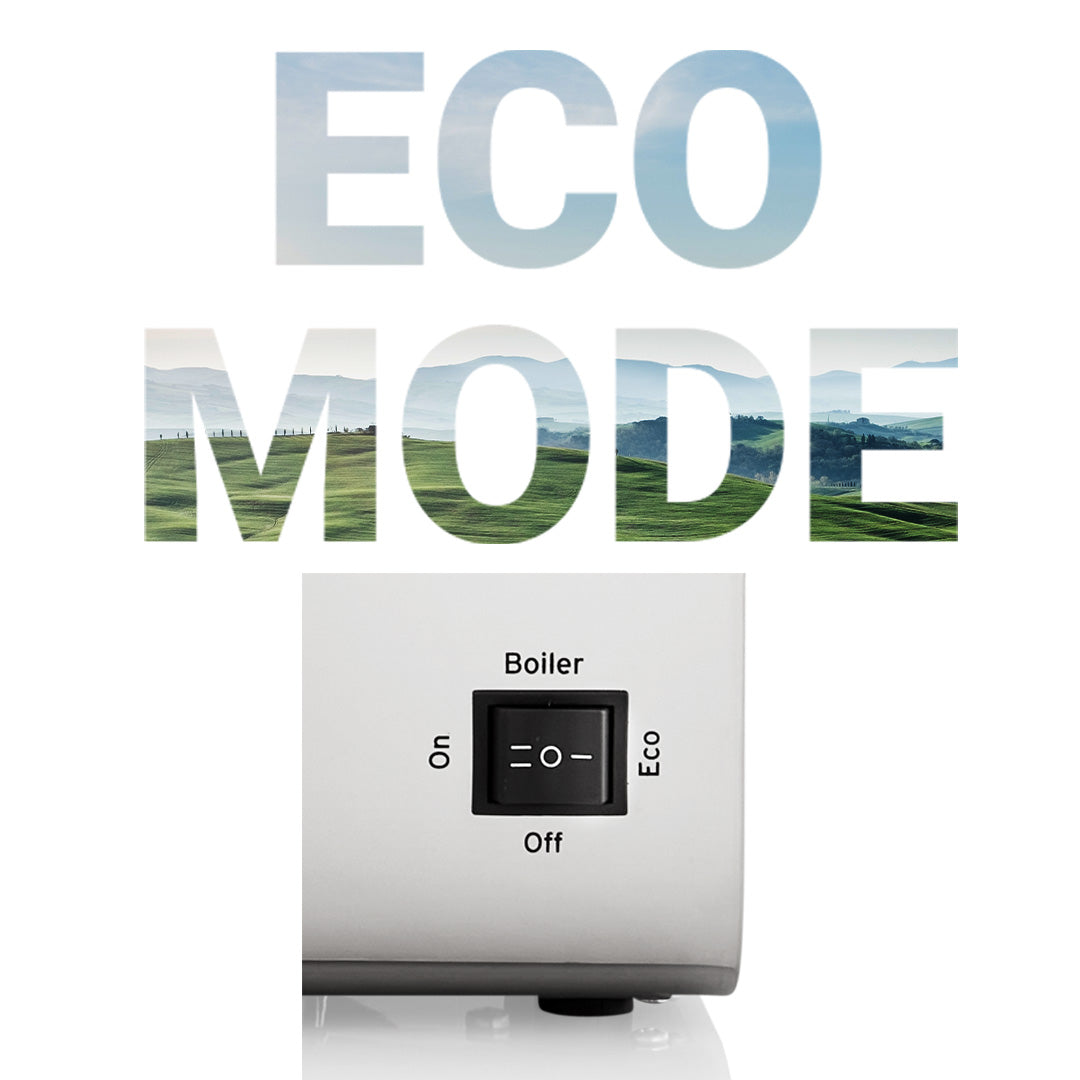

Stand by and Save up to 33%
If you use your boiler all day long, you’ll likely never need Eco-Mode. However, if you have periods during the day that you know the boiler will not be needed, the Eco-Mode lets you put the boiler into a standby state.

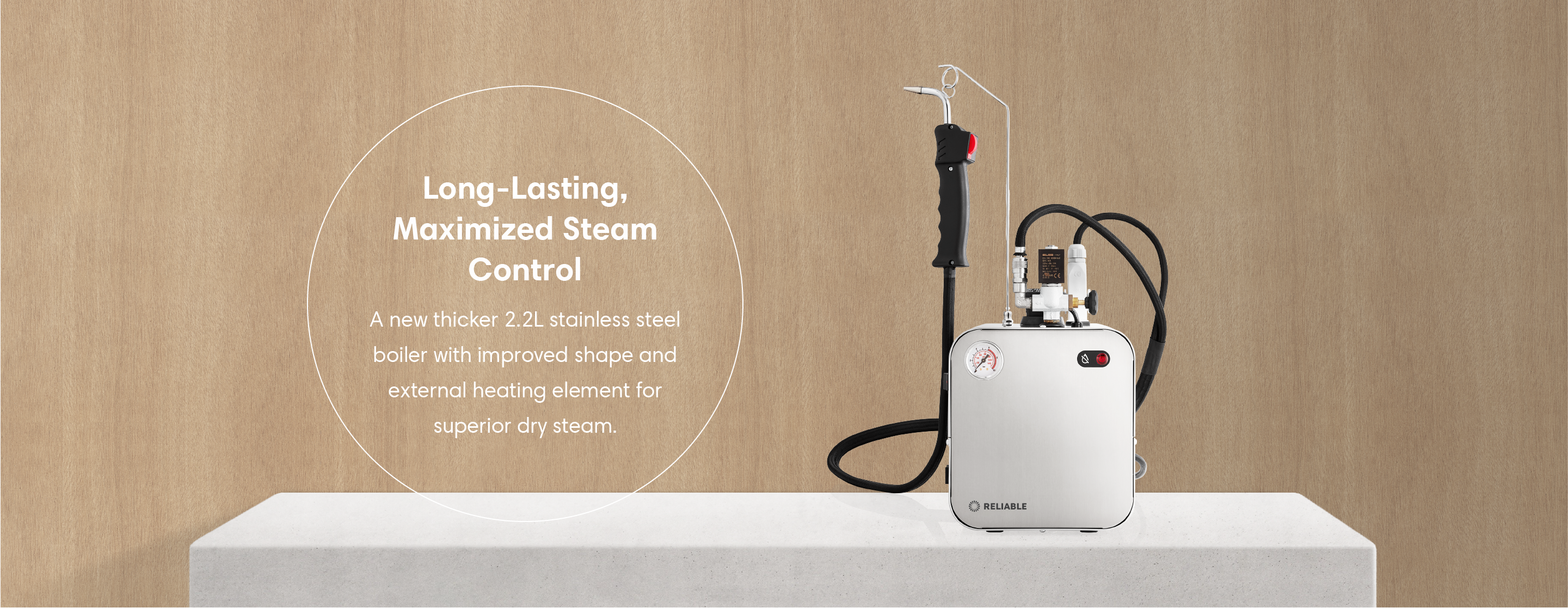

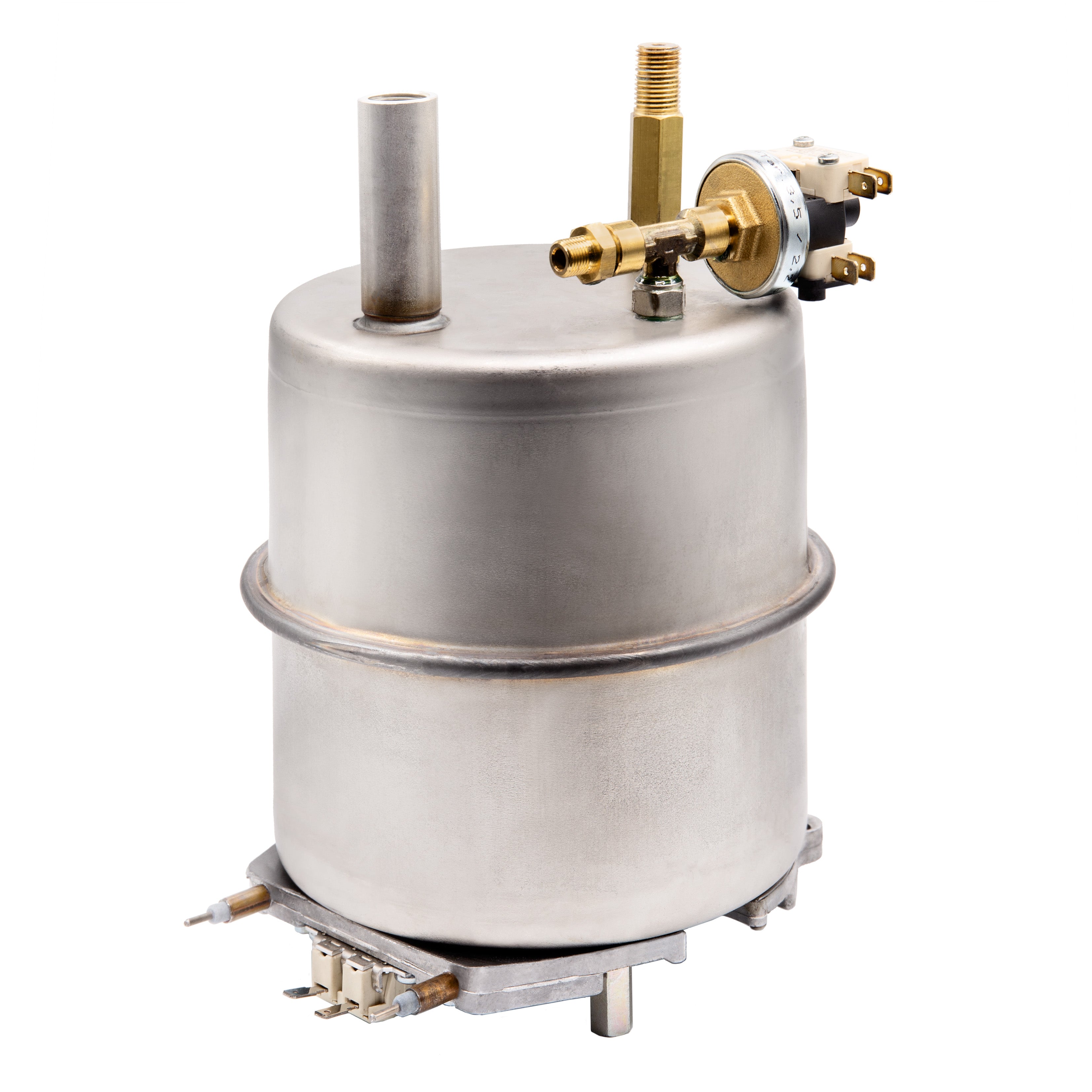

Our Boiler
After extensive research and development and exhaustive testing, we’re pleased to announce an all new stainless steel 2.2L boiler for the 5100 series boilers. Now up to 50% thicker!! With an improved shape for superior quality dry steam and a super robust external heating element to enhance the steam performance and the life of the boiler.

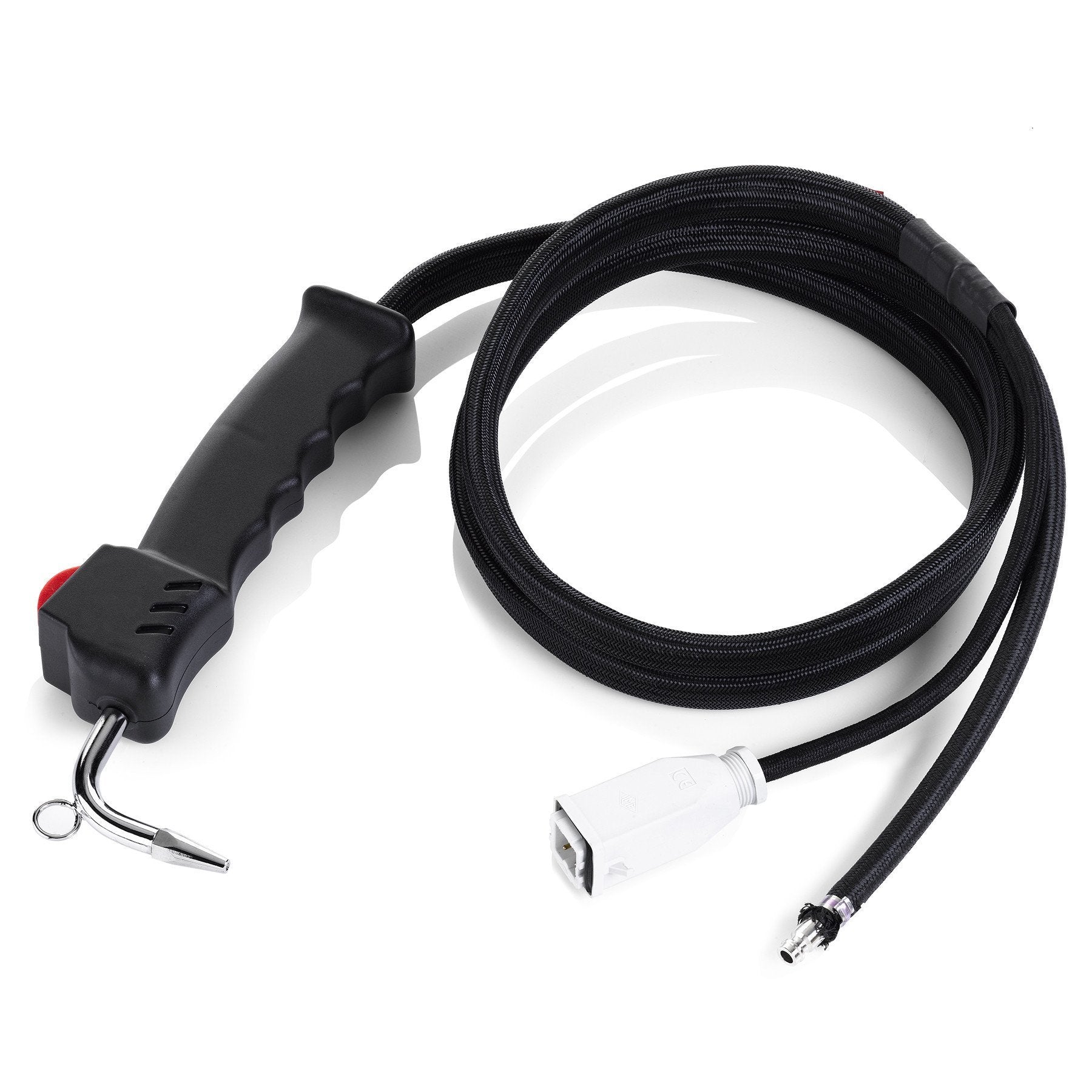

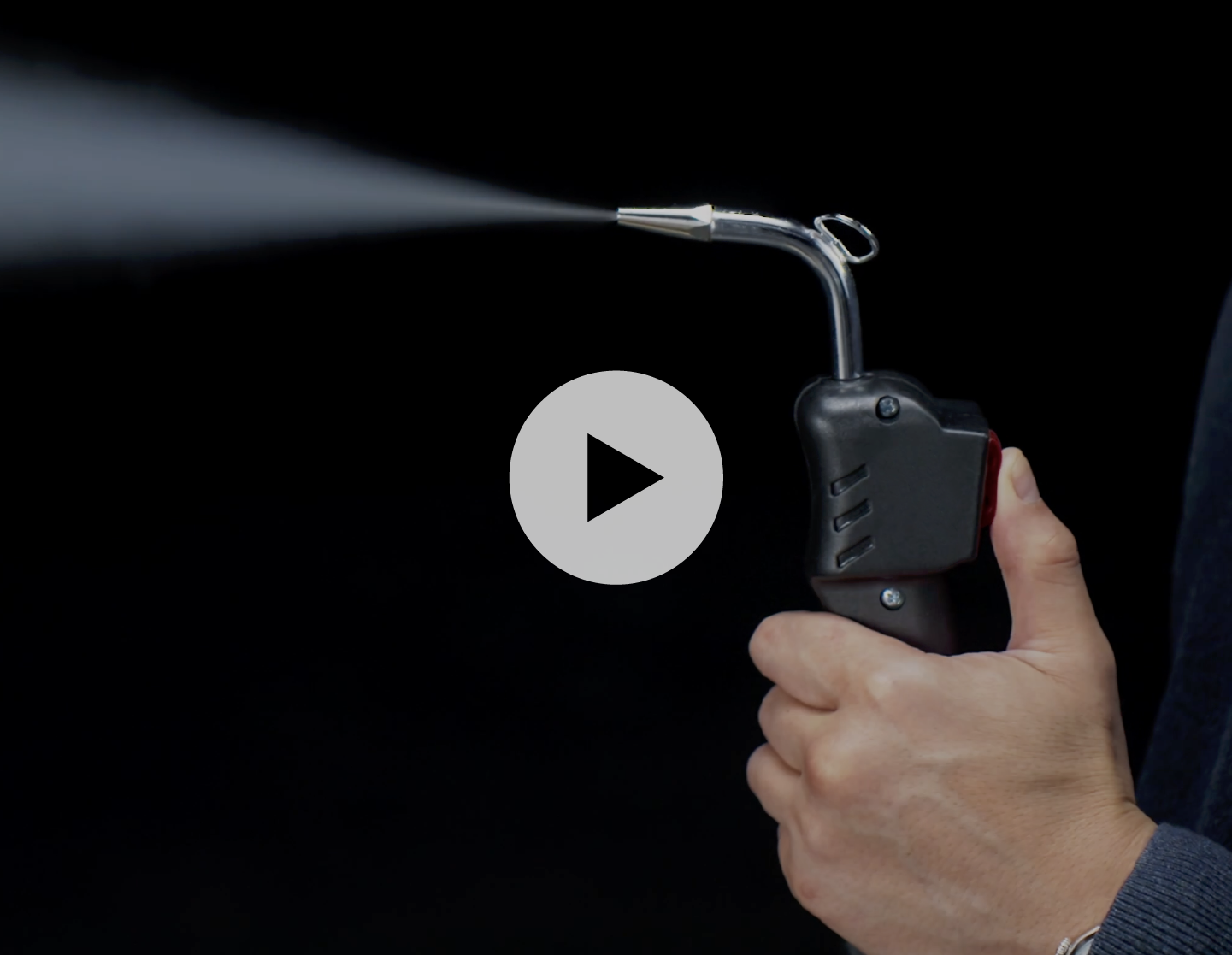

Steam Gun
The 3000DA steam gun comes with an 6’ steam hose and quick connect fittings. The small diameter opening gives a very concentrated amount of steam.

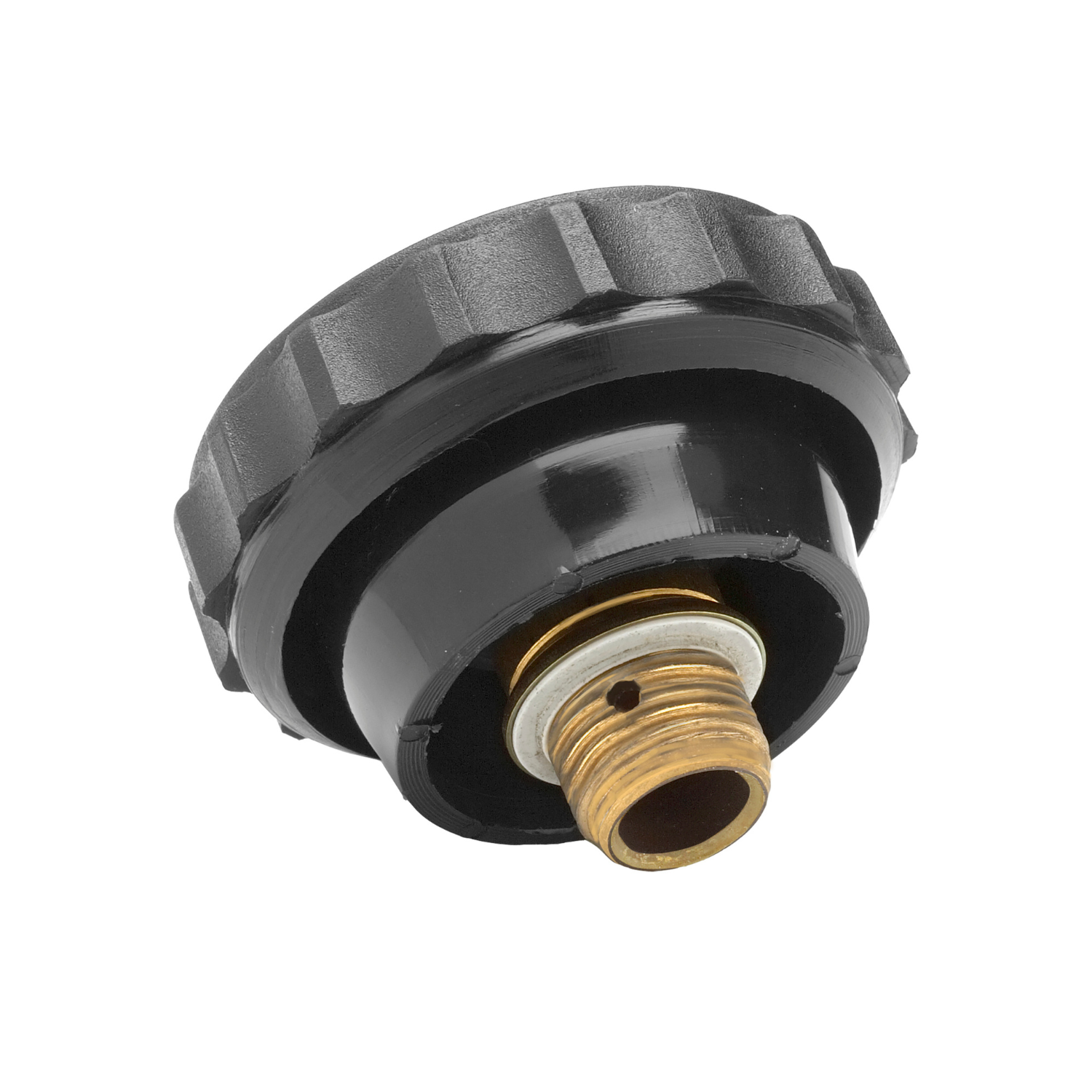

4 Safety Systems

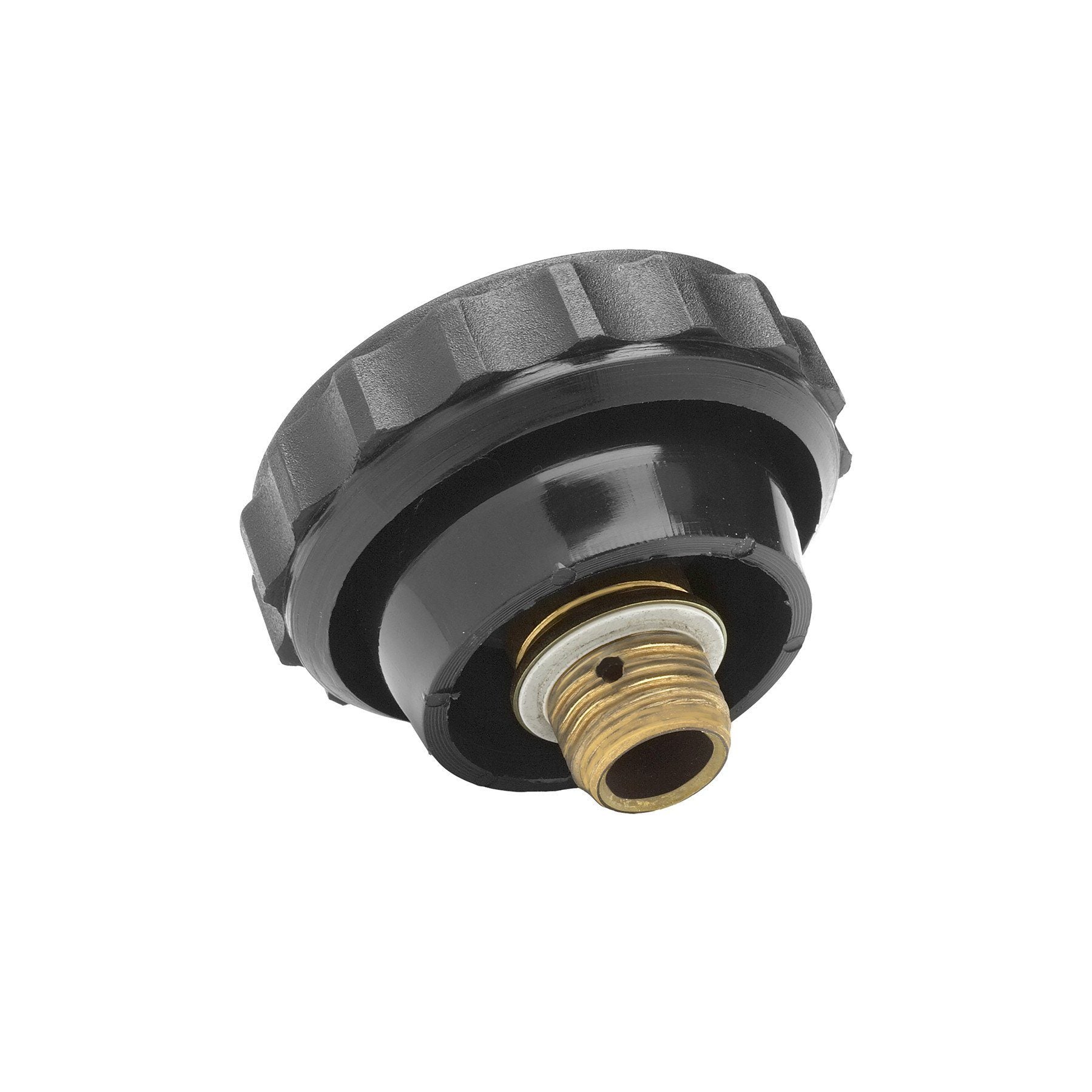

The 5100CD has 4 safety systems including a pressure switch, thermostat protection, safety cap with safety valve and a low water indicator.

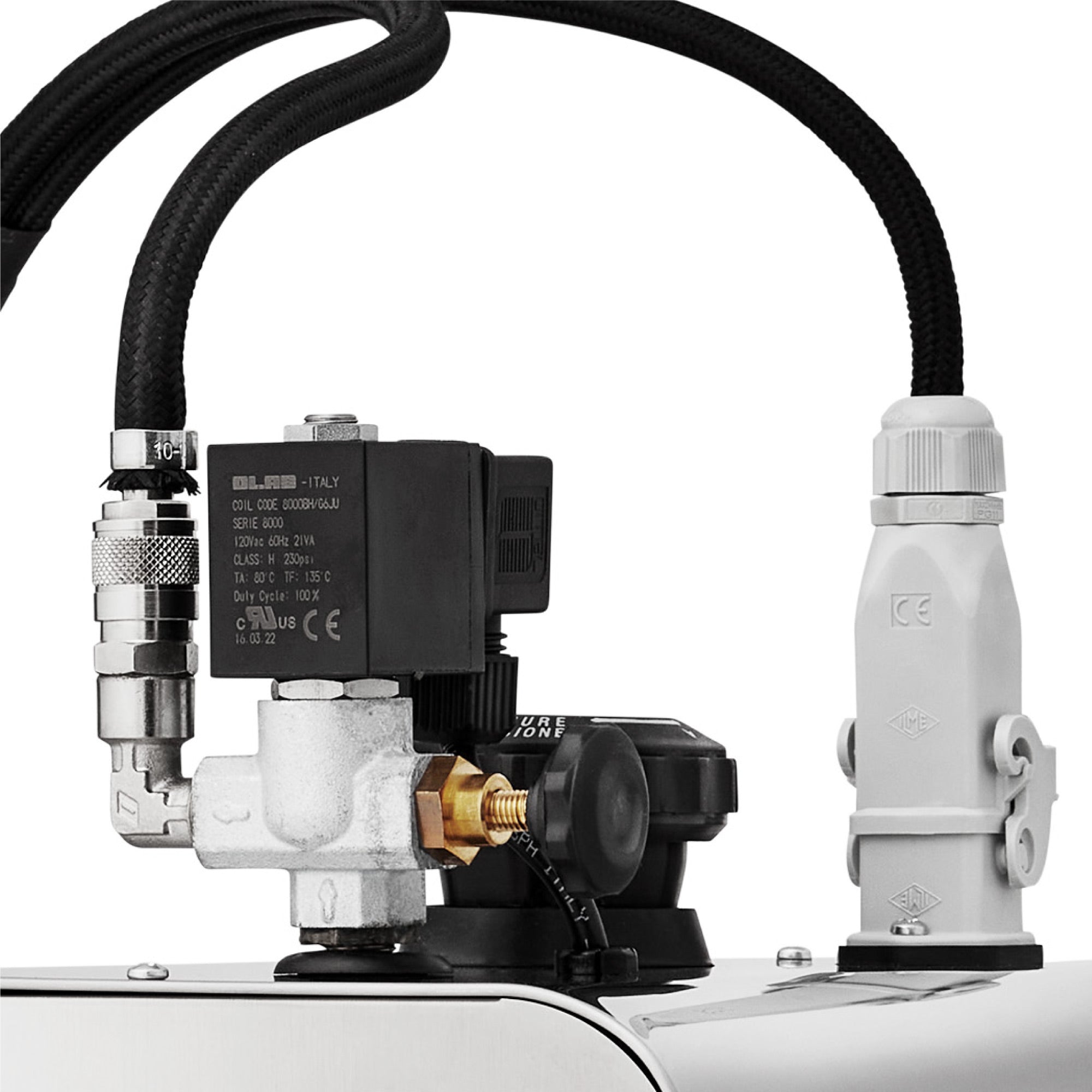

External Solenoid Valve with Variable Steam Dial
The solenoid allows the user to manually adjust steam output for complete steam control. The quick release fitting allows for easy removal and connecting of a wide variety of accessories.
