Specifications
Foot height adjuster permits you to raise and lower the walking foot.
Features a drop-in bobbin for heavier materials.

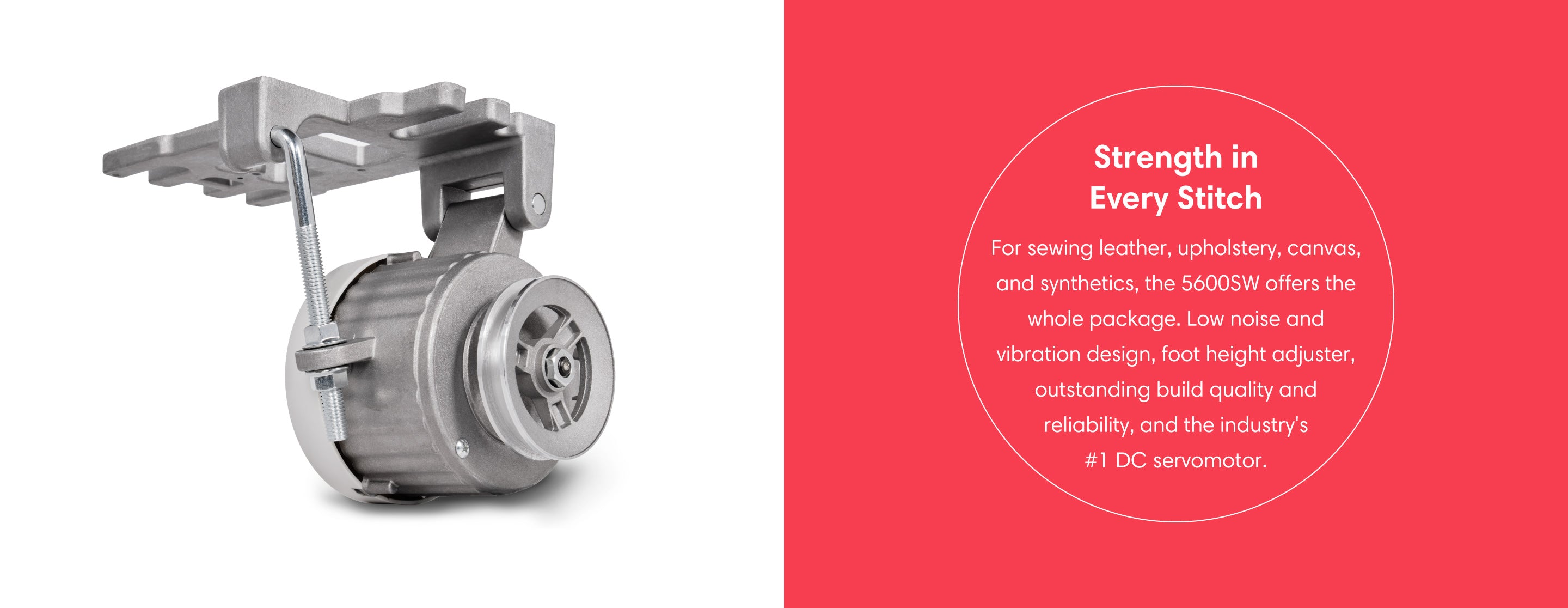

SewQuiet Servomotor with Synchonizer
Optional 1/4" Roll Edge Guide
Includes UberLight Flex Sewing Light
Ships fully assembled, tested, and sewn-off
Includes a high-quality stand and table top.
Dimensions

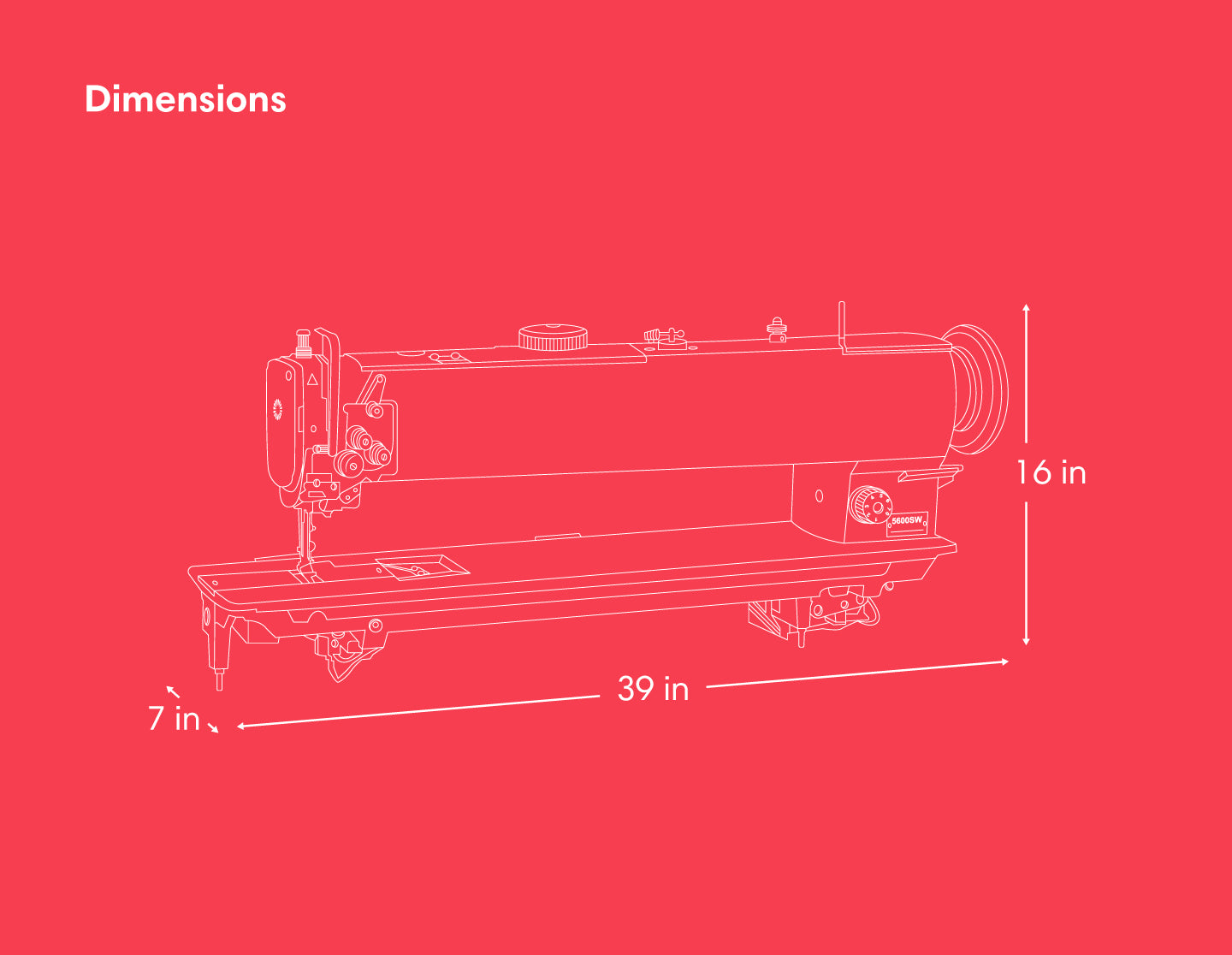

Head Dimensions 39" x 7" x 16"
99.1 x 17.8 x 40.6cm
Pallet Dimensions 48" x 40" x 46"
121.9 x 101.6 x 116.8cm
Operation
Stitch Length 0 - 9mm
Needle Bar Stroke 36mm
Needle System # 135 x 17
Work Space 25" / 63.5cm
Foot Lift 9mm
RPM 1800
Electrical 110V / 120V 60 Hz

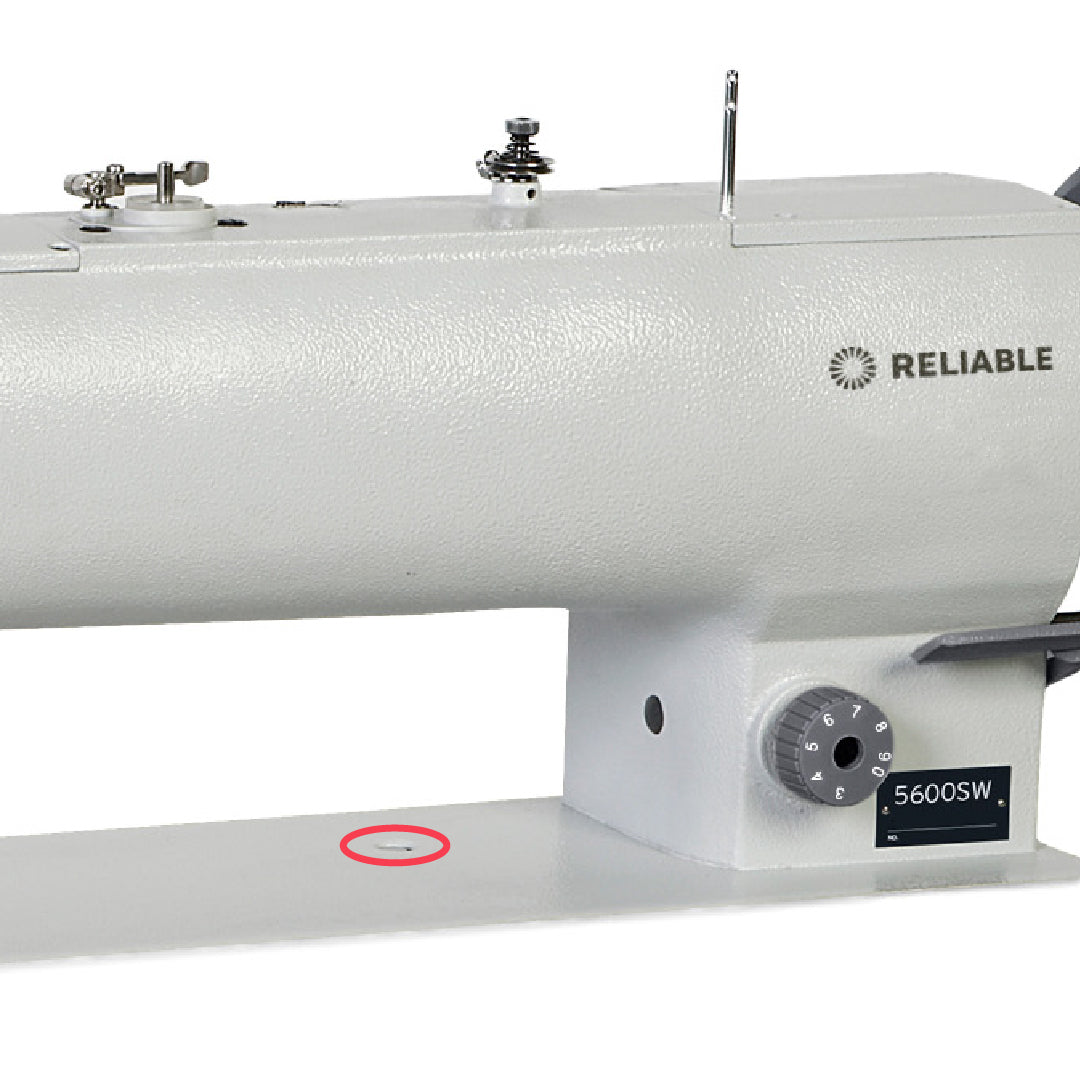

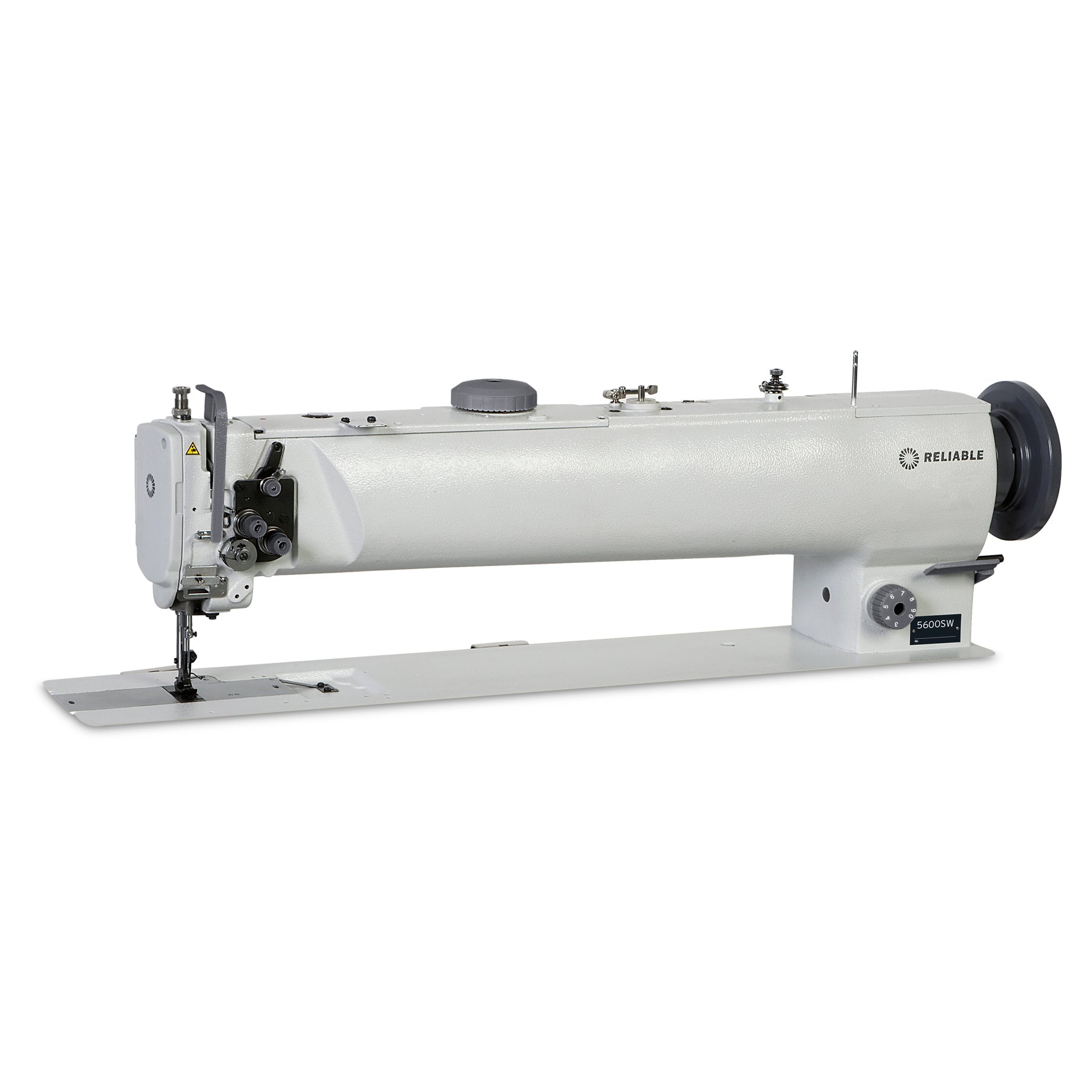

The 5600SW single needle, compound feed machine is a big machine. It’s so large in fact that we’ve added a bit of “Reliable magic” by including our #1 SewQuiet servomotor with the synchronizer so you can have all of the advantages of needle positioning functionality at no extra cost. A safety clutch, upper feed adjustment and a built-in bobbin winder complete this very capable machine for sewing medium to heavy weight leather, upholstery, canvas and synthetics.
The Right Tool for the Right Job
A good quality chair is indispensable for comfortable and supported sewing sessions, particularly during extended periods of sewing. This is why the Reliable SewErgo line of sewing chairs is a perfect choice.
Features

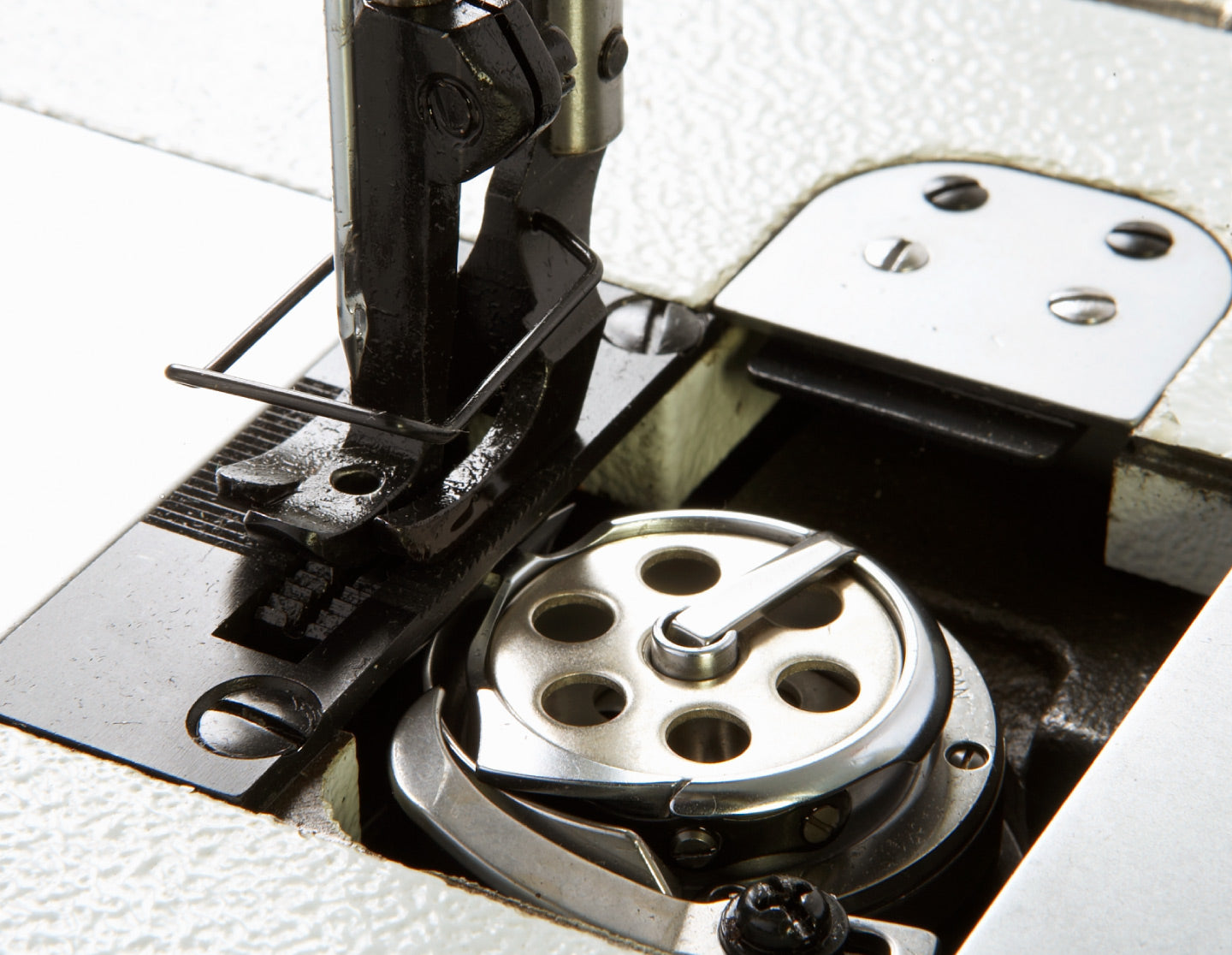

Top Load Bobbin
To assist with long seams and frequent bobbin changes, the 5600SW is equipped with a top-loading bobbin.
Needle Positioner
The needle positioning feature automatically stops the needle in the up or down position, eliminating the need for the operator to manually reach over to turn the handwheel.
Upper Feed Adjustment
For heavier seam clearance, a step adjustment from a minimum of 2mm to a maximum of 6mm.
Built-in Bobbin Winder
For added convenience, the bobbin winder on the 5600SW' is built-in to the front of the machine head.
Bobbin Thread Cutter
Conveniently cut the bobbin thread with the supplied thread cutter.

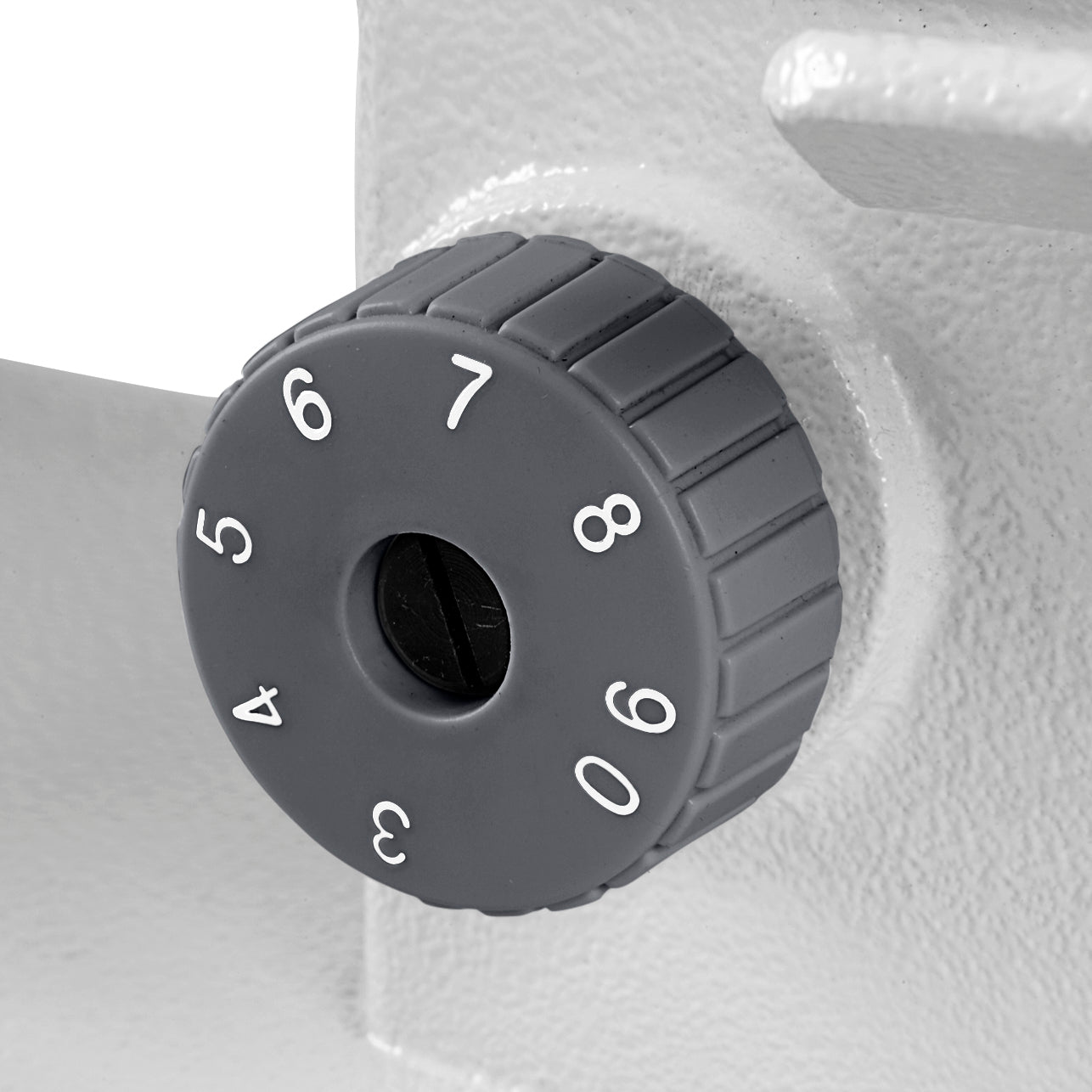

Stitch Dial Regulator
The stitch dial provides a simple adjustment (0-9 mm) for the length of the stitch.
UberLight 120TL
UberLight 120TL Light is included at no extra charge.
Superior Stand
Others skimp on the stand components, we don’t. We use only 100% plywood in our tabletops (not cheap particle board) and our legs are made from heavy-duty 3/32" steel.
