Specifications
Utilizes a 12-coil design for increased torque for heavier work.
Offers variable speed control for customizable operation.
Digital Speed Control up to 6000RPM
Built-in overload protection to prevent damage.
Allows clockwise and counterclockwise directions.
Includes a built-in light receptacle for added visibility.
Optional synchronizer available .
Dimensions
Product Dimensions 10" x 9.25" x 6"
25.4 x 23.5 x 15.24 cm
Box Dimensions 13.2" x 11.4" x 8"
33.5 x 29 x 20 cm
Operation
Electrical 220V / 550W / 2.5 amps
H.P. 3/4
Pulley Type Aluminum
Pulley Size 60 mm
Drive Shaft Diameter 12 mm
Warranty Limited 1 year

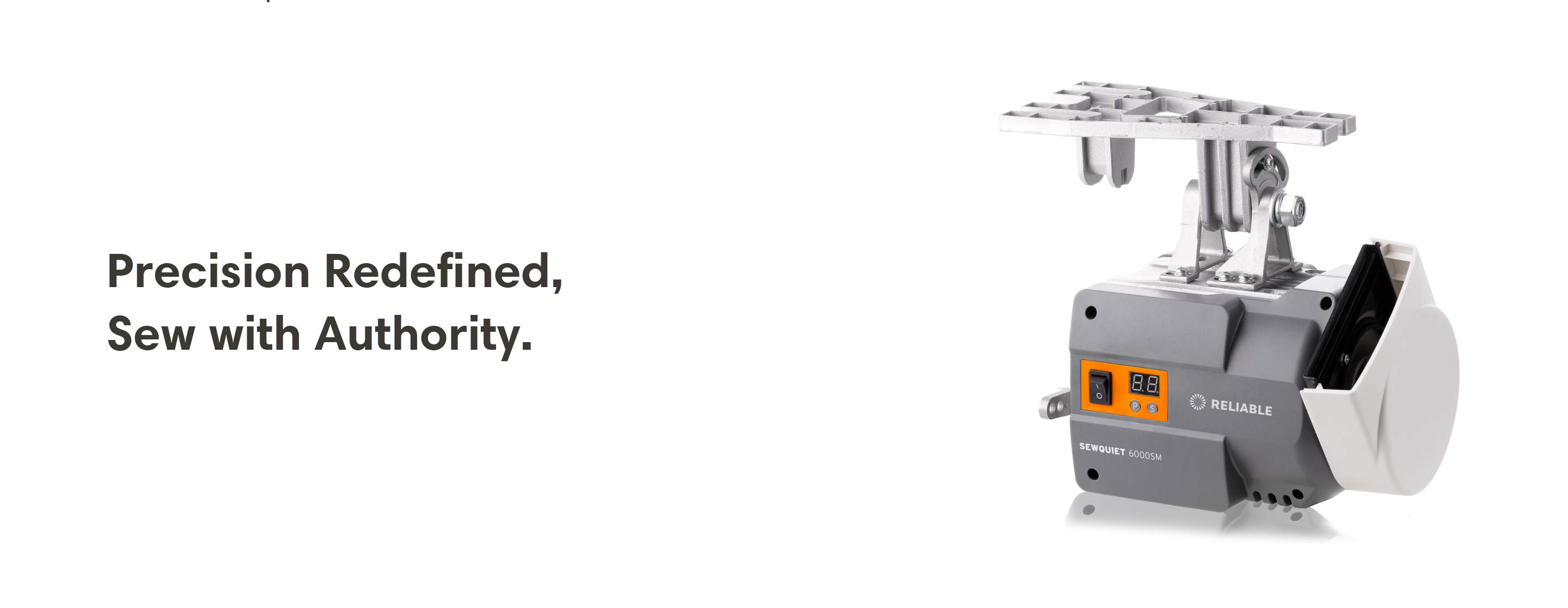

The SewQuiet 6050SM brushless DC servomotor is the 220V version of our 6000SM and is the only servomotor to incorporate a full 12-coil (vs. 6 or 9) design. This provides unparalleled power and torque, the kind of torque that is needed to work with the toughest materials. (Synchronizer is optional).

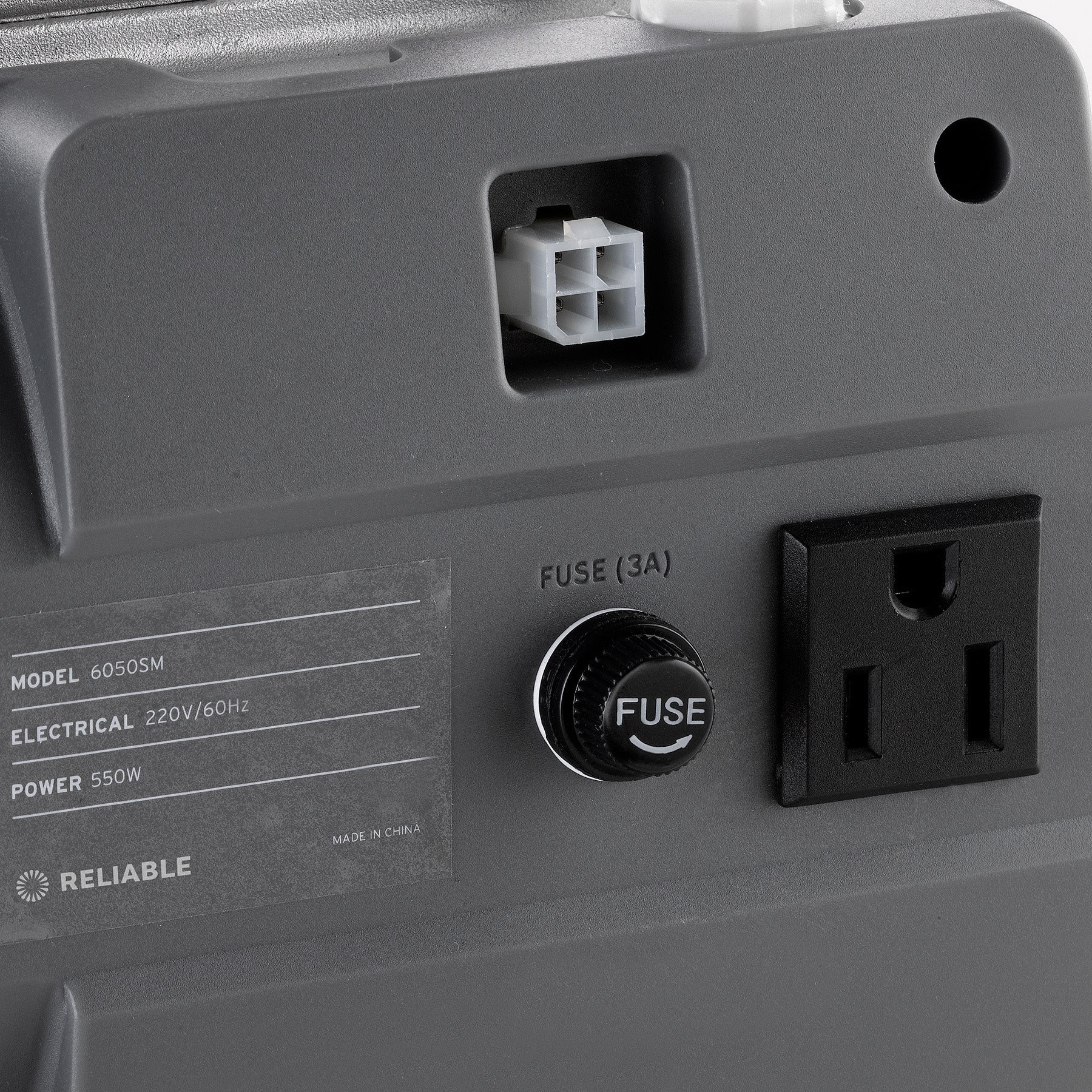

*Please note this 220V model does not come with a wall side plug. That needs to be supplied by the customer and wired on.
The Right Tool for the Right Job
A good quality chair is indispensable for comfortable and supported sewing sessions, particularly during extended periods of sewing. This is why the Reliable SewErgo line of sewing chairs is a perfect choice. Our SewErgo chairs are meticulously designed to offer superior comfort and support. Elevate your sewing experience with the perfect combination of comfort, support, and affordability. Made in Canada, Made to last!
Features
Built-in Light Receptacle
The 6000SM is equipped with a fused and grounded receptacle to plug in an UberLight LED light or a light of your choice.
Note: Not available on 6050SM 220V model. 110V only.
PCB Insulation
PCB insulation houses and protects the internal electrical components of the motor.
Belt Adjustment
Belt tensioning device is simple and easy to set-up on all sewing machine brands.
