Specifications
Vacuum and Heated Surface for Commerical Pressing and Ironing Results
Up Air Functionality is Ideal for Delicates, Eliminating the Risk of Impressions or Nap Crushing
Extra Large 52 in. x 25 in. Pressing Surface for a Wide Variety of Pressing and Ironing
Powerful 0.8 h.p. Vacuum Motor for Faster Results
Heavy-duty Swing Arm with Heated Sleeve Buck for Pressing Inseams and Sleeves
Heavy-duty Swing Arm with Heated Utility Buck for Jacket Front, Side and Back (Collar, Lapel Etc) and Topping of Pants
Adjustable Thermostat for Heated Surface
Includes Ironing Pad and Cord Support for Added Utility
Proudly Made in Italy for Exceptional Quality and Craftsmanship
Requires a 20 Amp Receptacle for Proper Operation

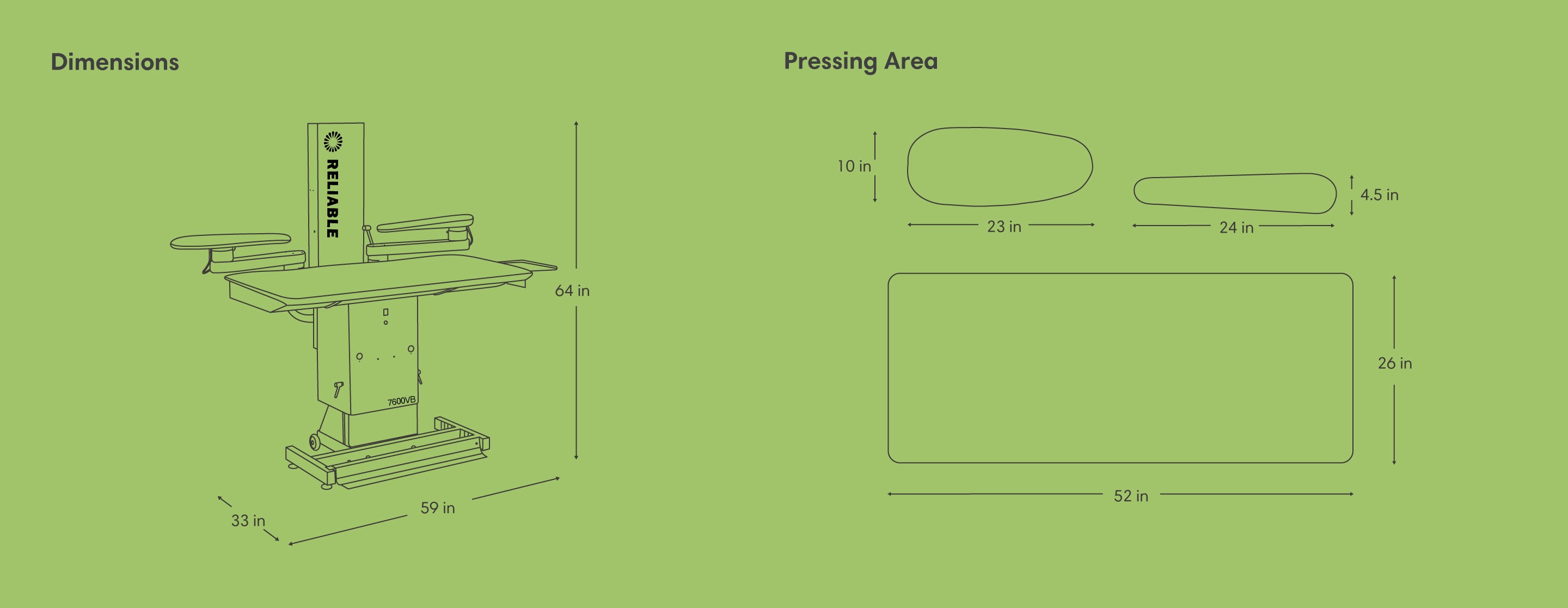

Dimensions
Product Dimensions 33" x 64" x 59"
84 x 162.5 x 150 cm
Box Dimensions 40" x 50" x 60"
101.6 x 127 x 152.4 cm
Operation
Electrical 110V / 20 amps
Horsepower 0.8 hp
Pressing Dimensions 52” x 26” / 132 x 66 cm
Net Weight 292 lb / 133 kg
Shipping Weight 355 lb / 161 kg
Warranty Limited 1 Year
Country of Origin Italy

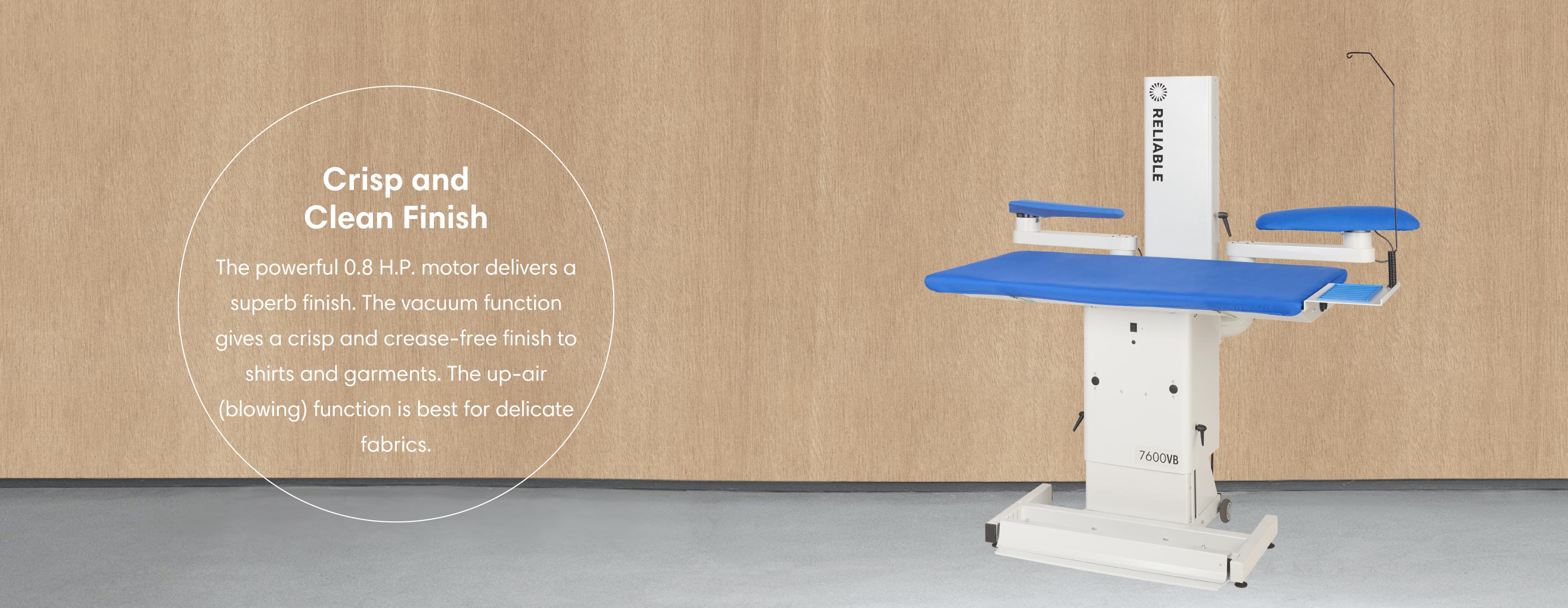

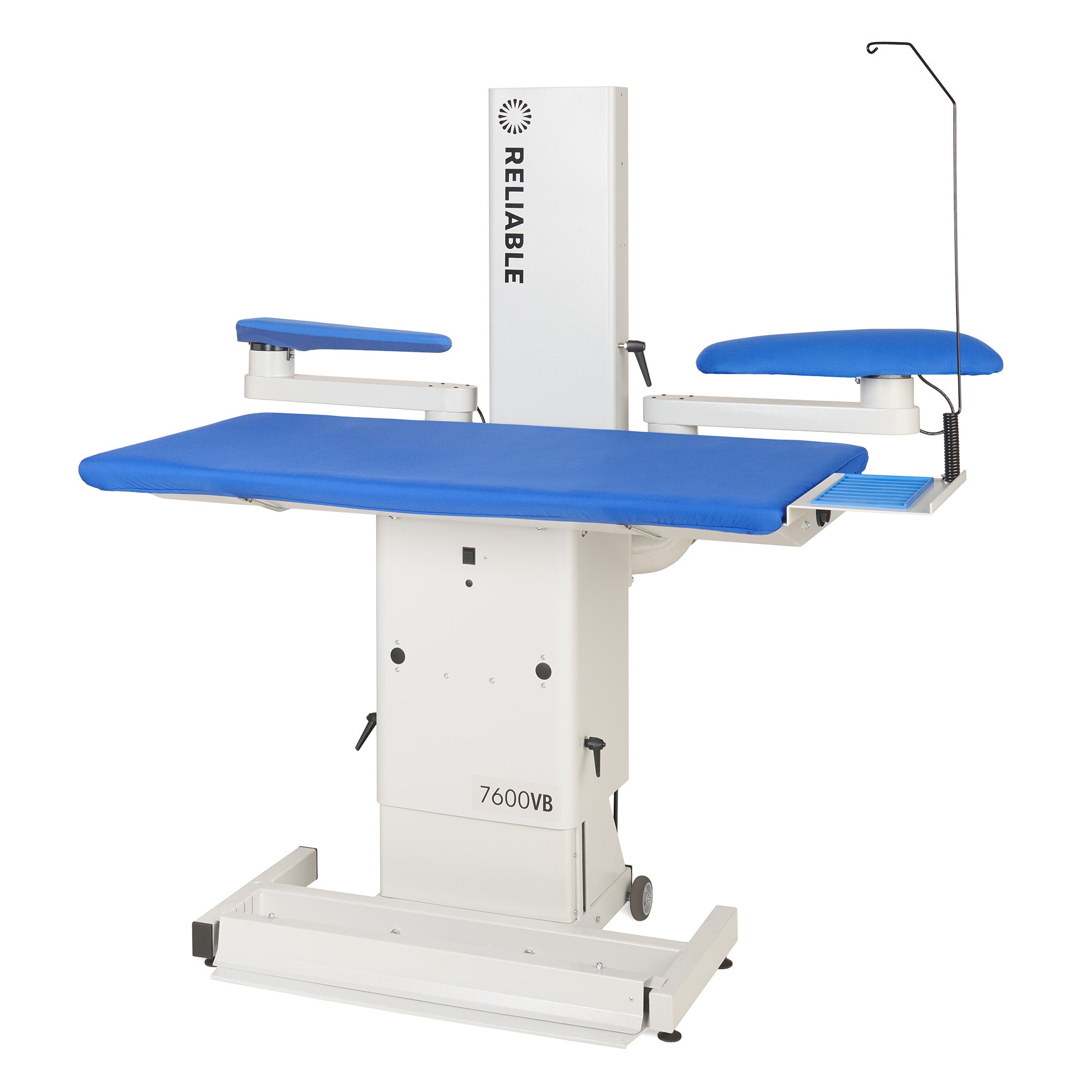

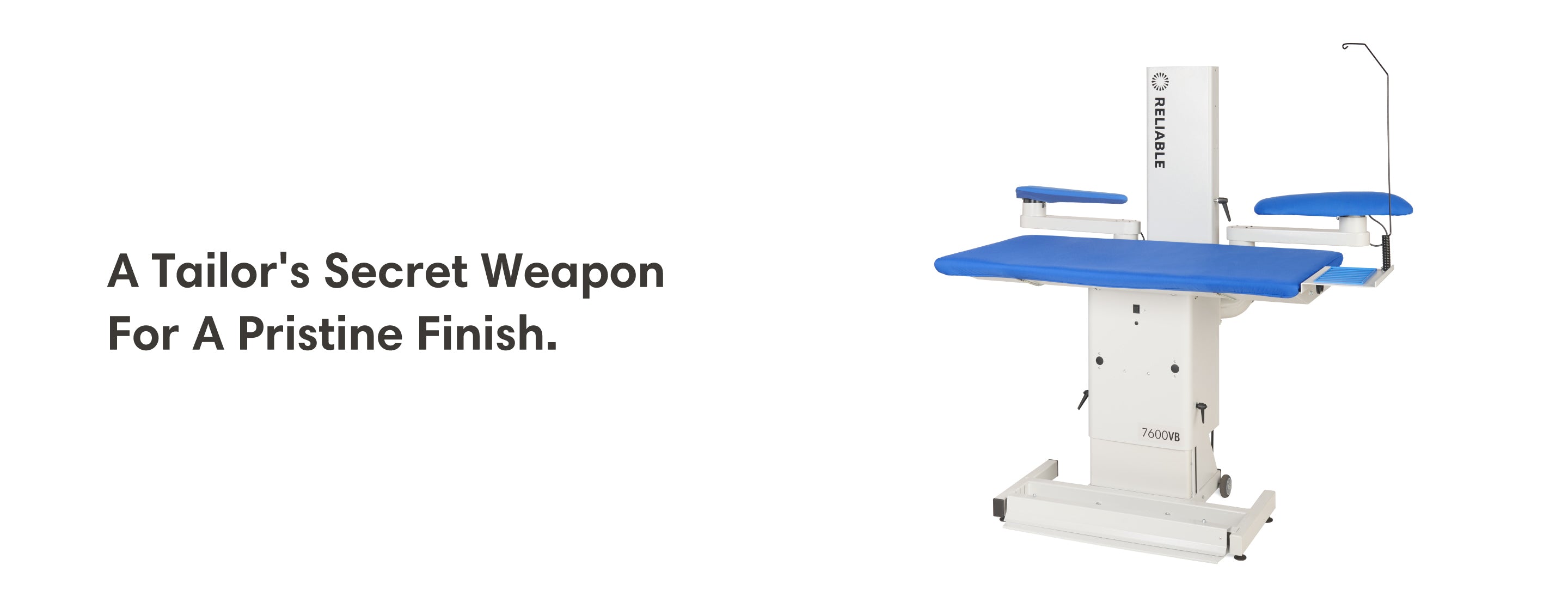

Professional Ironing Board with a heated work surface and a powerful vacuum and up-air motor. The 7600VB provides the ultimate set of pressing tools and comfort for the professional seamstress or tailor with it’s powerful and adjustable 0.8 h.p. vacuum, electrically heated work surface, and up-air motor.
The height-adjusted 7600VB features two heavy-duty swing arms and heated utility and sleeve shaped bucks. We also include an exhaust chimney for the air, adjustable iron rest, and iron cord support. The main pressing surface has an external thermostat control to select the correct temperature.
**An isolated line with a 20 amp receptacle is required for the unit to plug into.
Features
Vacuum Function
The vacuum function holds fabric firmly and evenly into place, eliminating the possibility of dragging or further wrinkling as you iron. Use this function for pressing a shirt or putting in a crease.

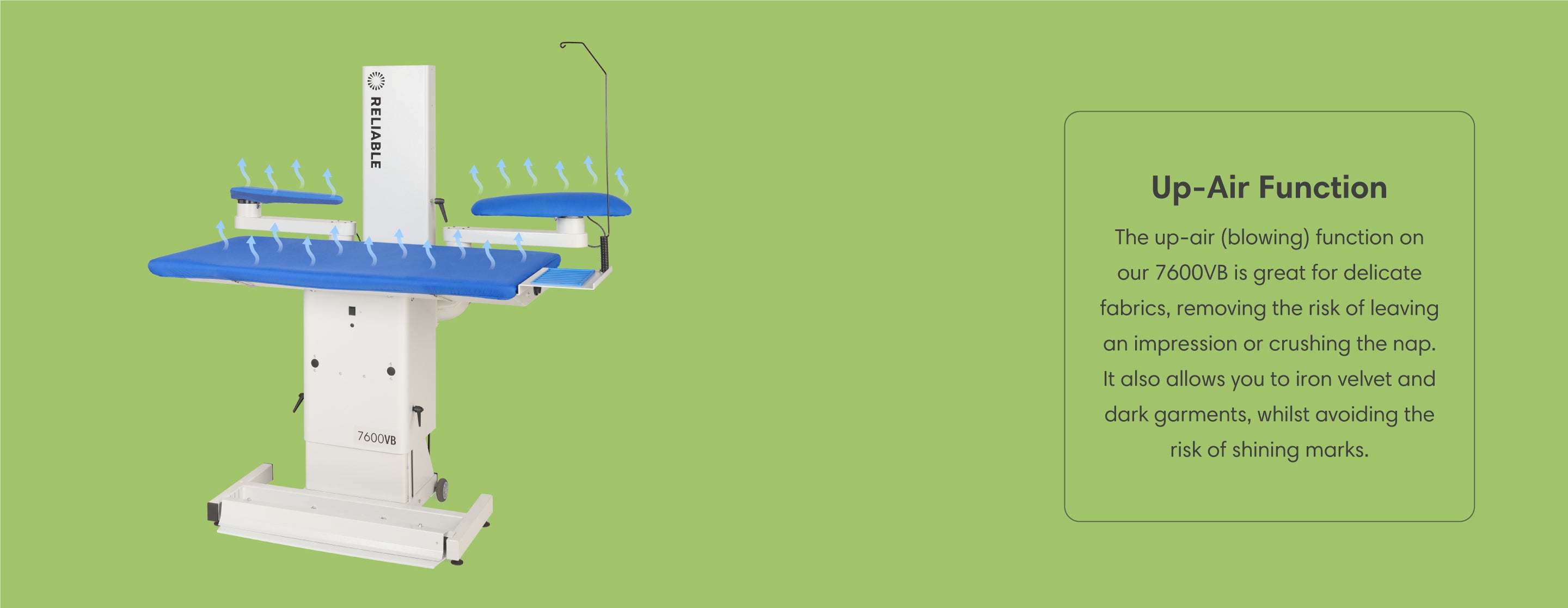

Up-Air Funtion
The up-air (blowing) function on our 7600VB is great for delicate fabrics, removing the risk of leaving an impression or crushing the nap. It also allows you to iron velvet and dark garments, whilst avoiding the risk of shining marks.
Heated Surface
Built-in heating element keeps surface and clothes dry during steaming and pressing.

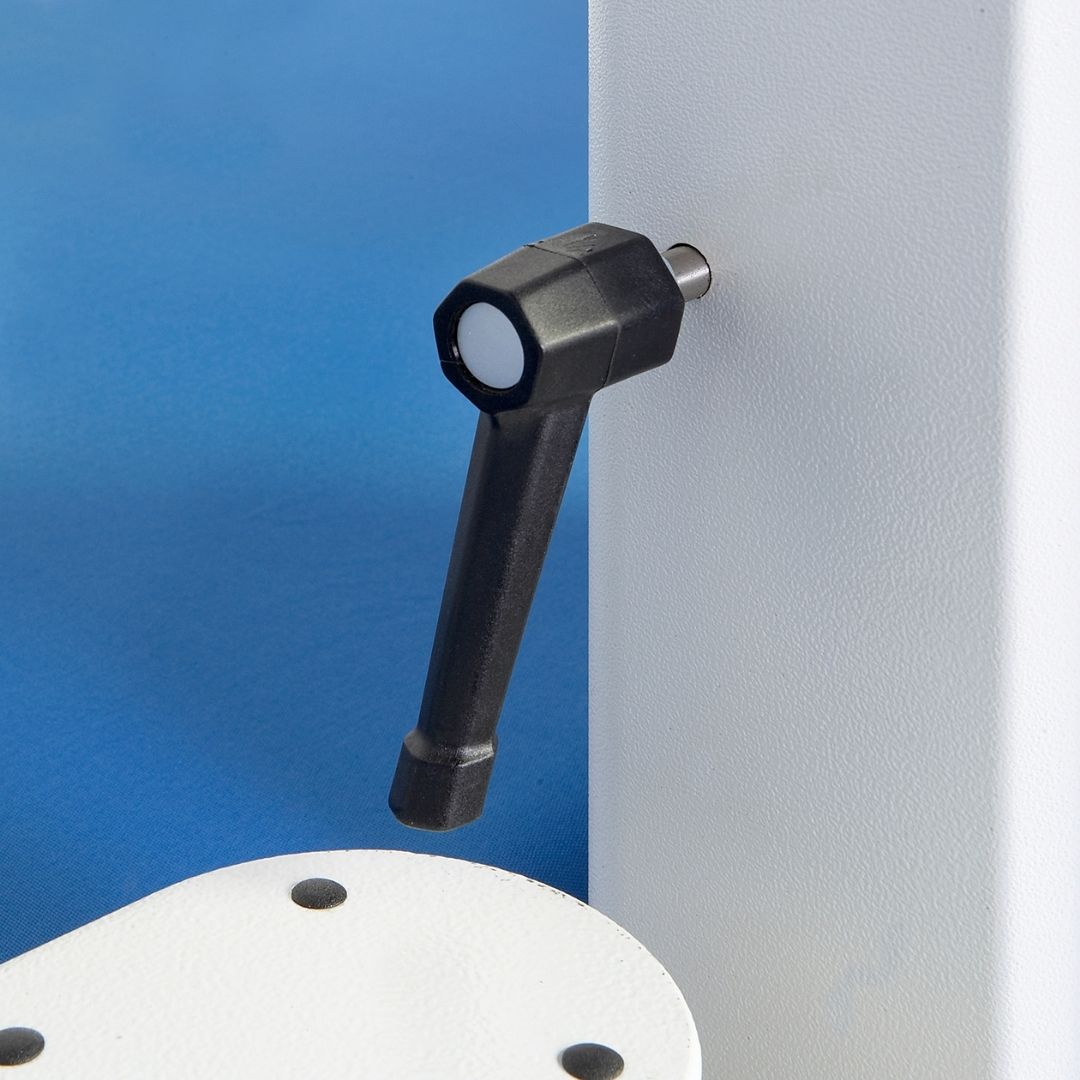

Vacuum Adjustment Lever
The minimum and maximum amount of vacuum is controlled by a lever mounted on the chimney of the 7600VB.

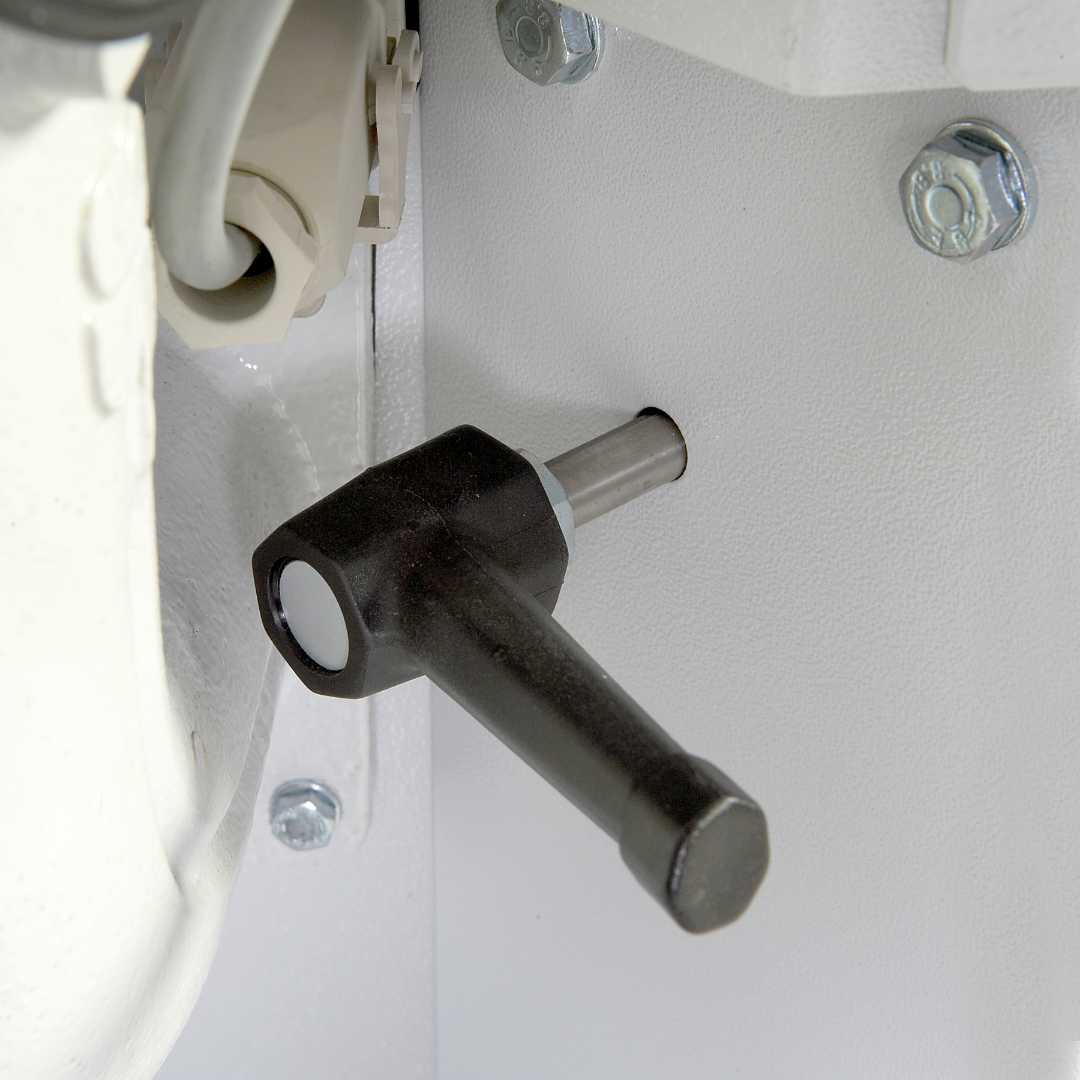

Up-Air Adjustment Lever
The minimum and maximum amount of up-air is controlled by a lever mounted on the side of the 7600VB.

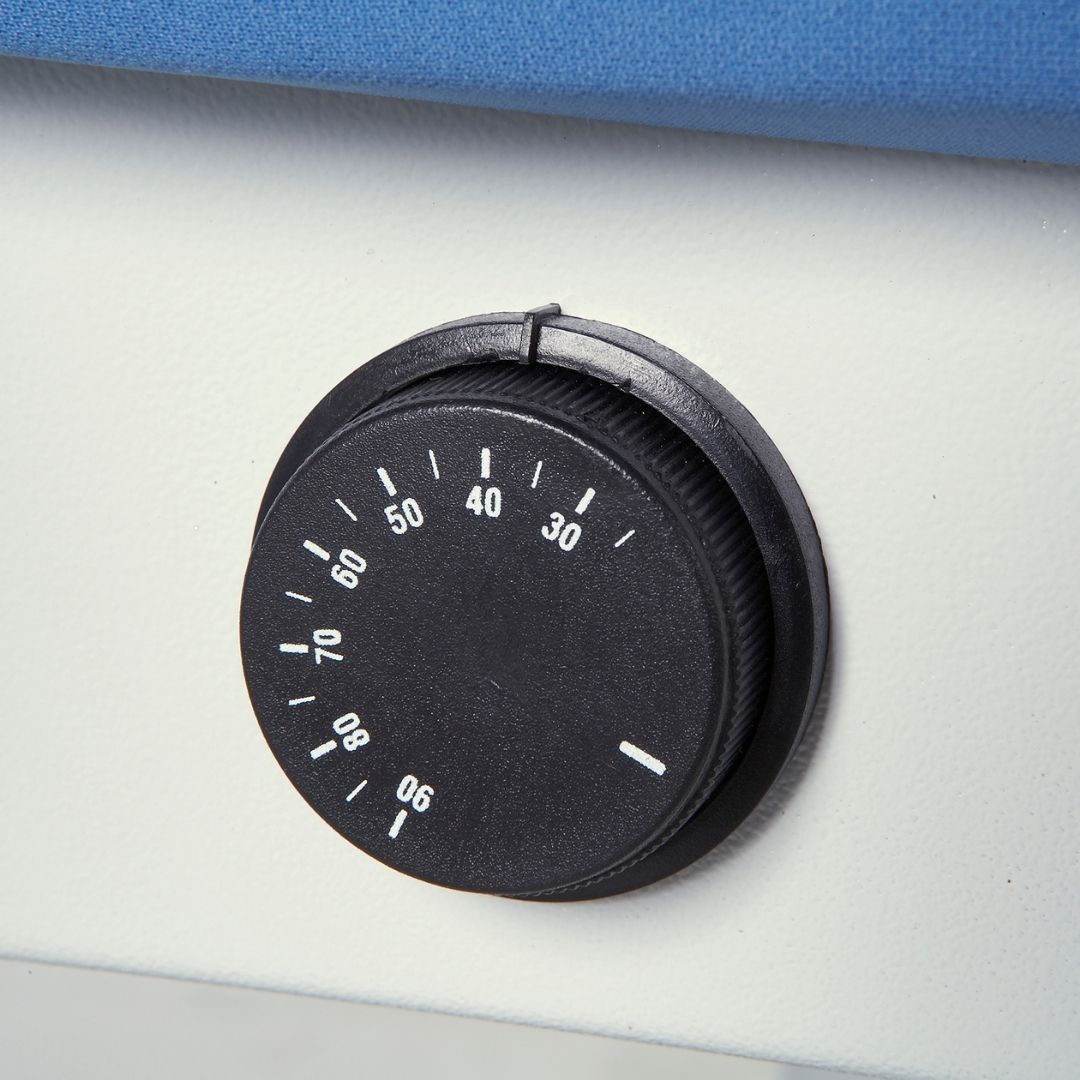

Thermostat
The thermal temperature of the heating surfaces are controlled by a thermostat which is conveniently located.

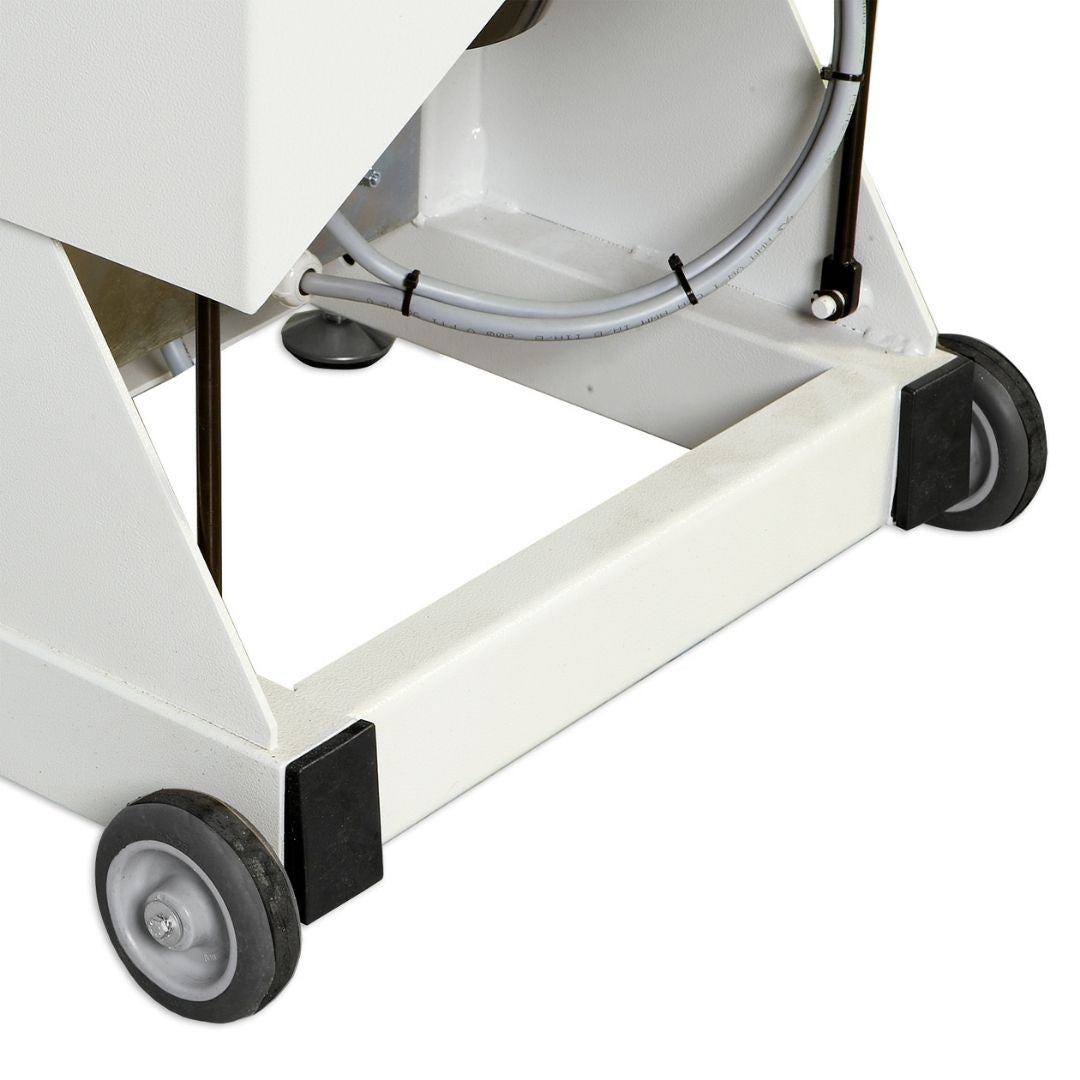

Easy Transportation
The 7000 series tables are equipped with wheels to allow for easy maneuvering of the machine.

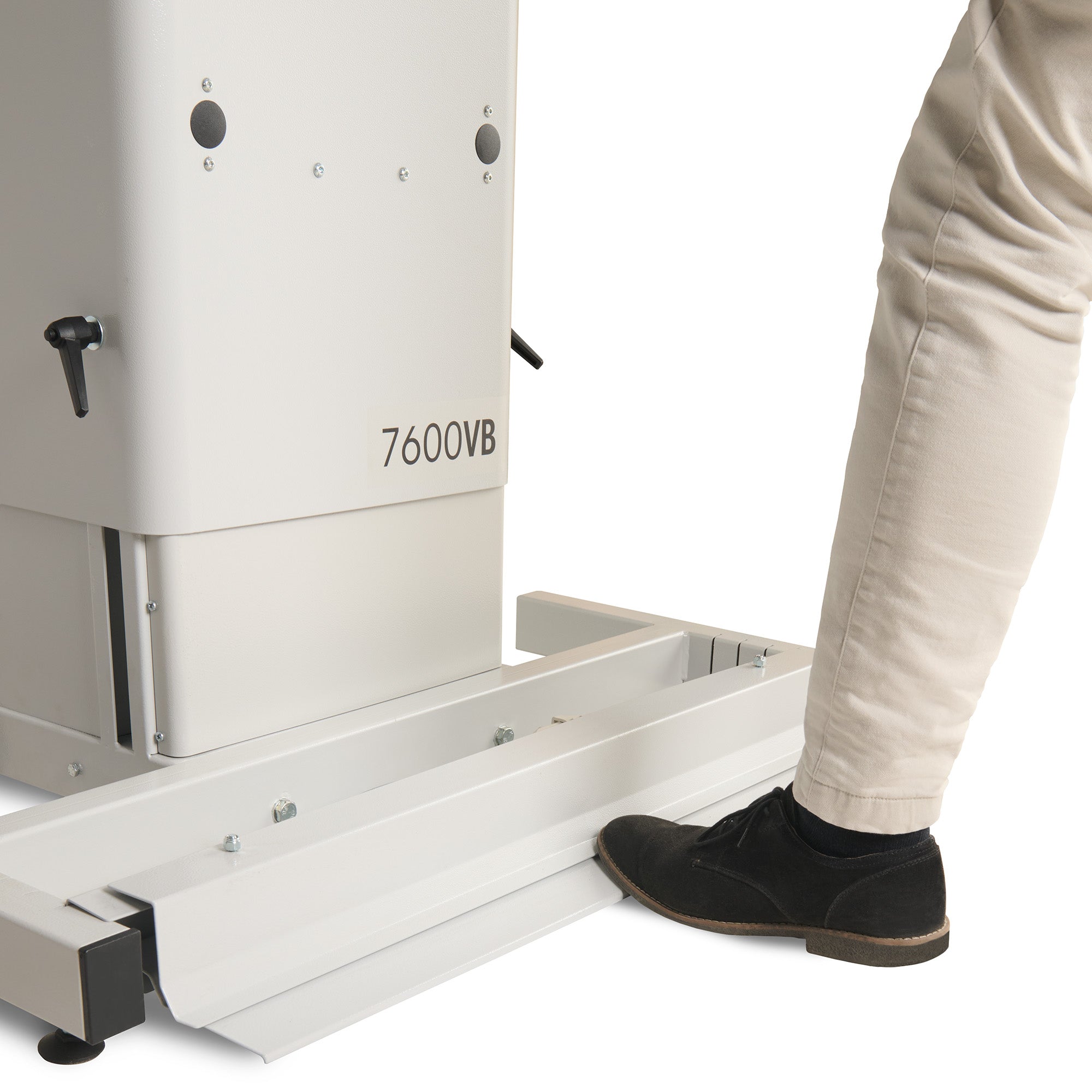

Adjustable Pedals & Height
The two pedal system on the 7600VB allows for complete control of the vacuum and up-air. The pedals can also be located in different positions to allow for the maximum comfort of the operator.

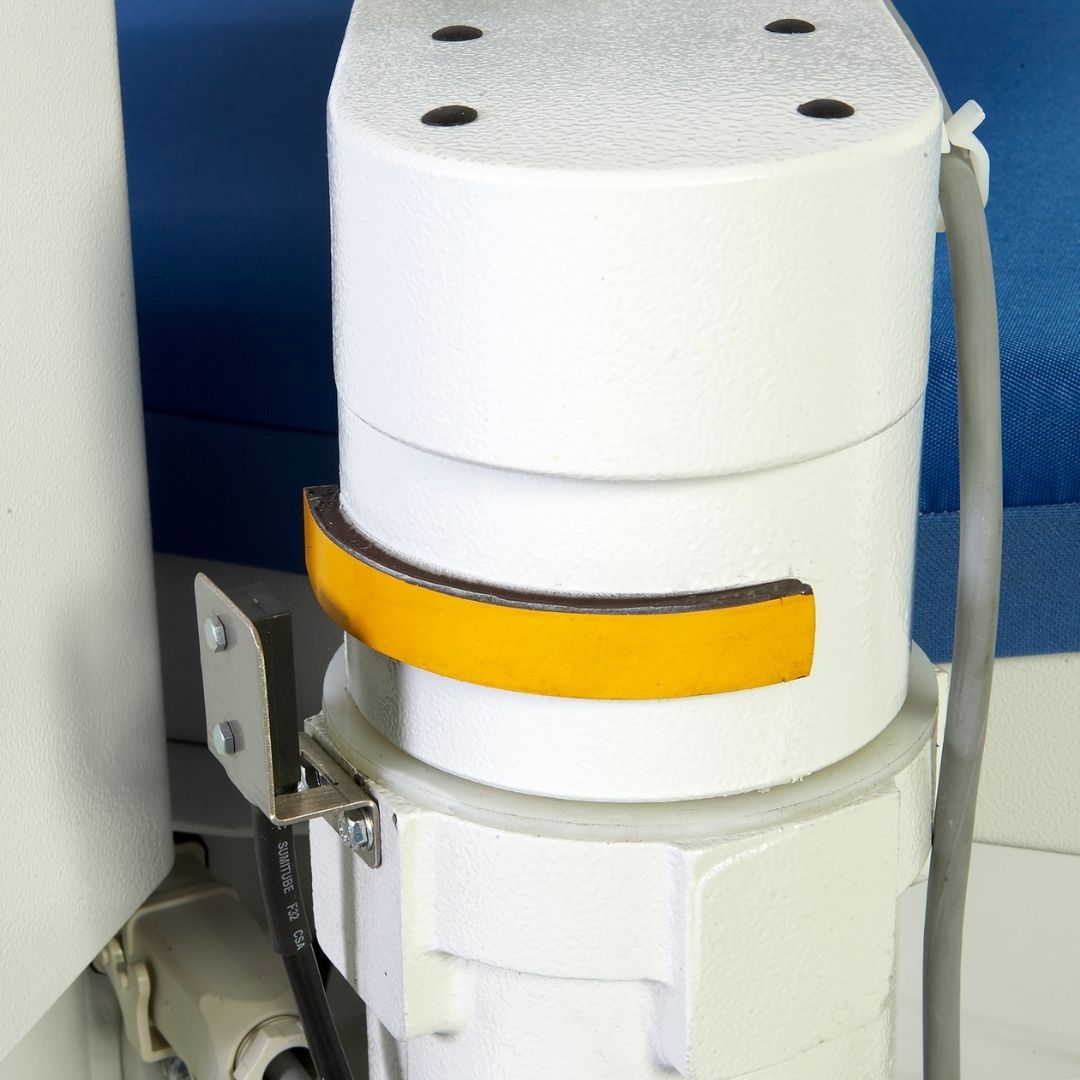

Air Transfer Switch
When the swings arm and bucks are brought forward, an electro-magnetic switch activates a DC motor that transfers the vacuum or blowing function to the swing arm and buck.
20 Amps of Power
Our Vacuum Pressing Table comes equipped with a .8 horsepower motor and a heating element, both of which contribute to the production of professional-grade results. A 20 amp receptacle must be installed for the unit to plug in. Please contact your local electrician for assistance.
Italian Quality
“Made in Italy” is a sign of prestige for the global textile industries. We are proud that the production of our commercial ironing products is 100% Made in Italy. Che Bello!

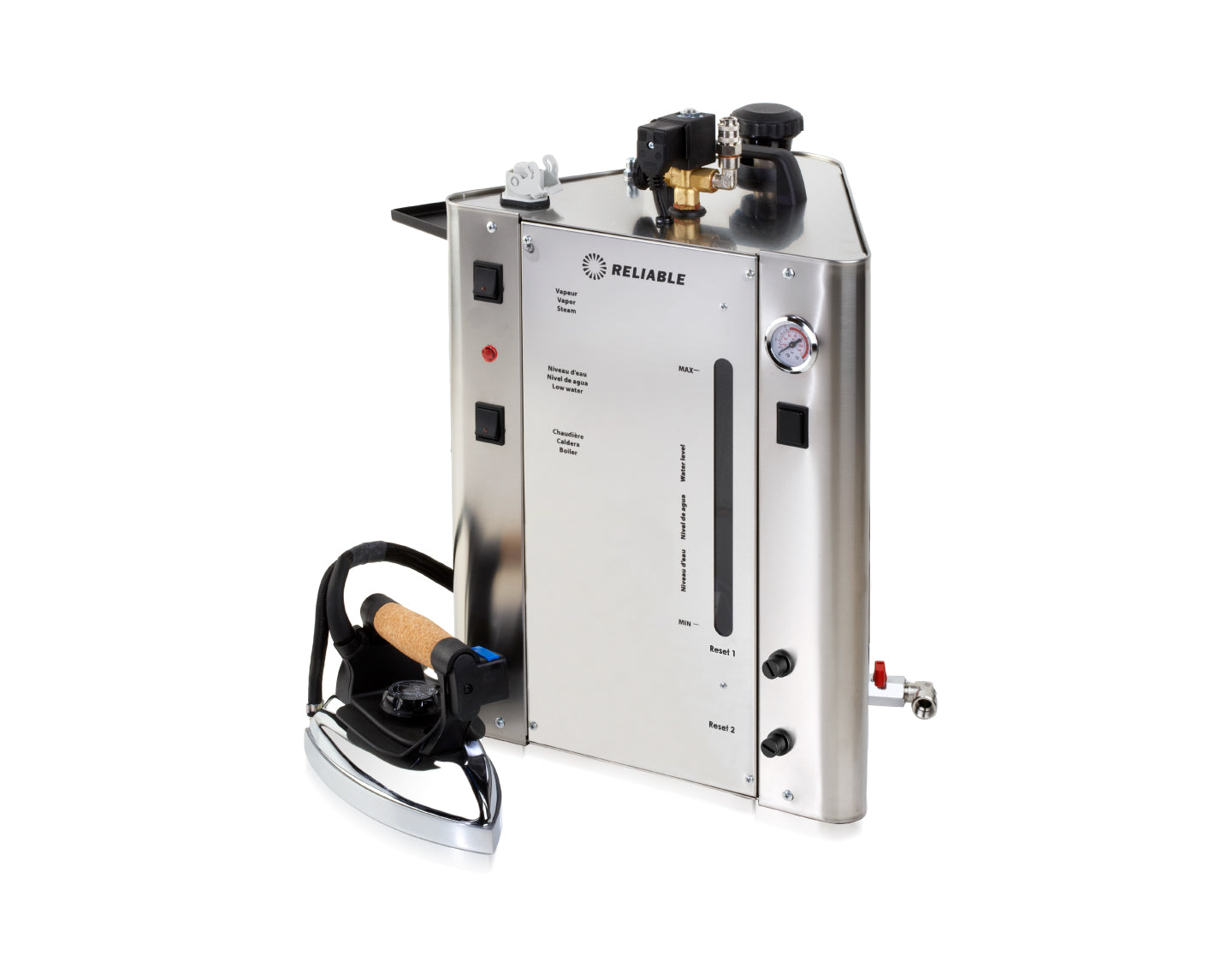

The Right Tool for the Right Job
The secret to a great garment finish is using the right tool for the job. A Professional Vacuum Board paired with our Professional Steam Iron Stations help to deliver perfect results with components that will endure the rigors of commercial use.
