Specifications
Equipped with a direct-drive motor.
Features index stitching for precise and controlled sewing.
Automatic Bobbin Winder
Optional 1/4" Roll Edge Guide
Includes UberLight™ Flex Sewing Light
Ships fully assembled, tested, and sewn-off
Includes a high-quality stand and table top.

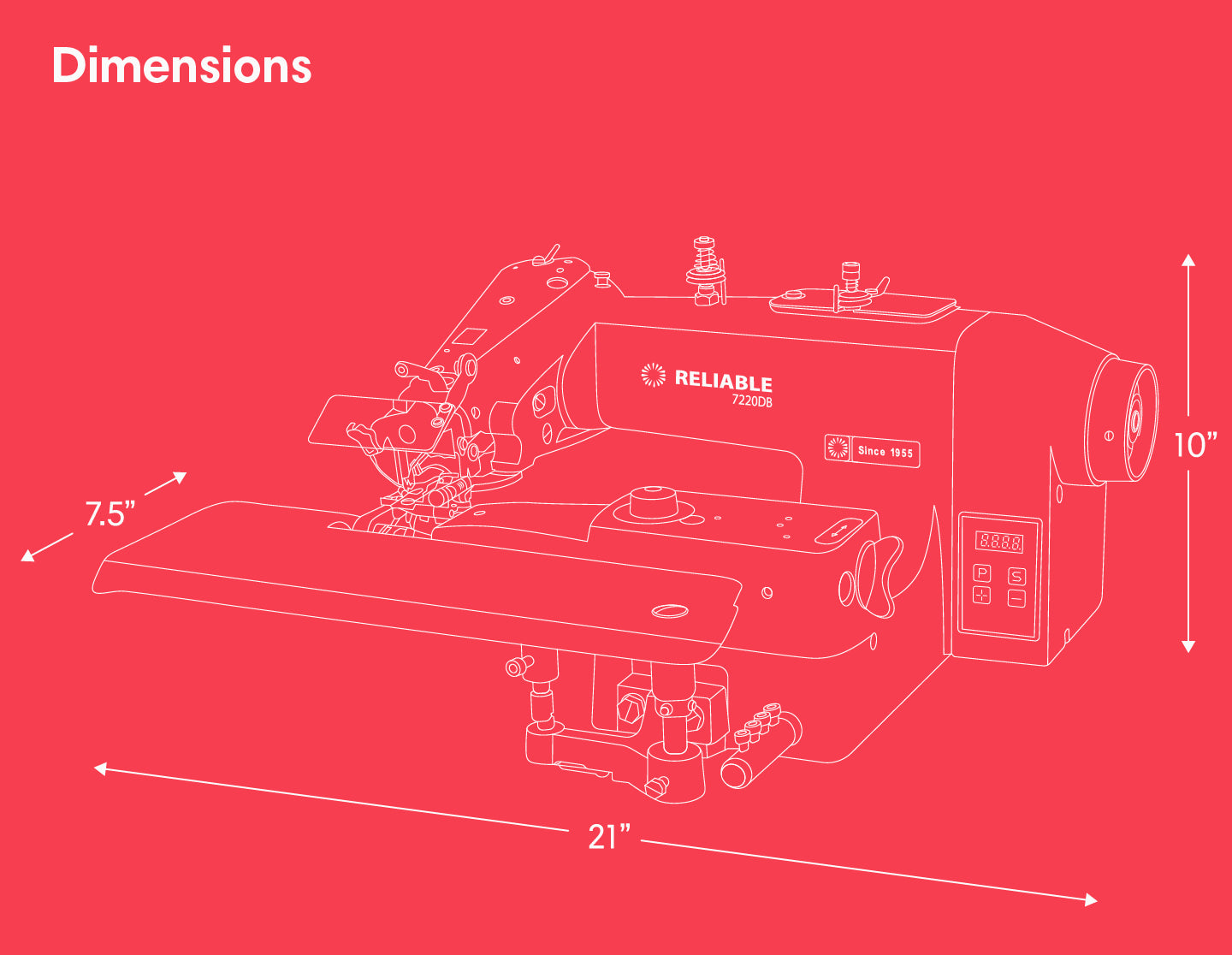

Dimensions

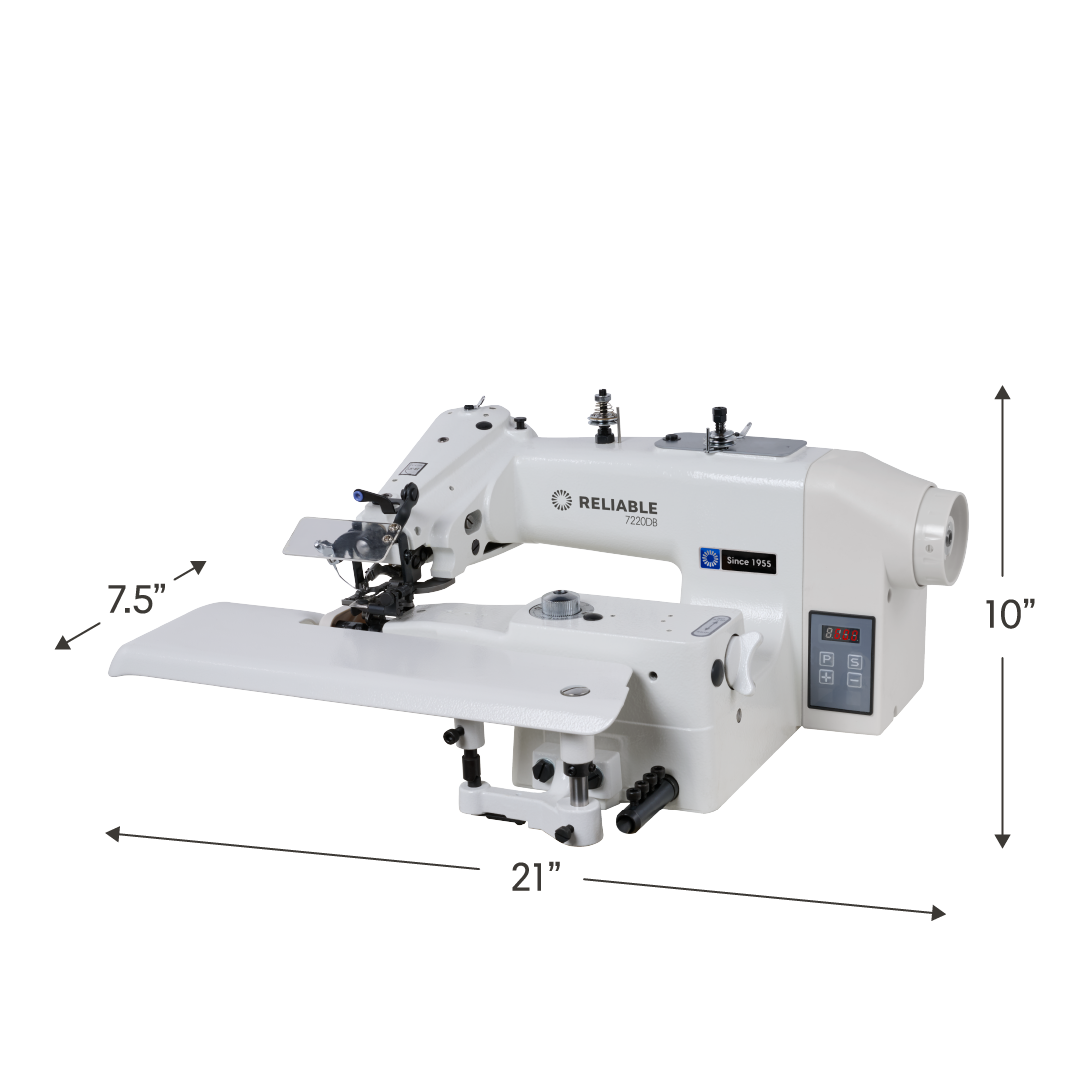

Head Dimensions 21" x 10" x 7.5"
53.3 x 25.4 x 19 cm
Pallet Dimensions 48" x 40" x 39"
121.9 x 101.6 x 99.1cm
Operation
Stitch Length 0 - 8mm
Needle Bar Stroke 36mm
Needle System # 29 BL
Work Space 10" / 25.4cm
Lubrication Semi-automatic
Foot Lift 9mm
RPM 1200
Electrical 110V / 120V 60 Hz
Specifications
Equipped with a direct-drive motor.
Features index stitching for precise and controlled sewing.
Automatic Bobbin Winder
Optional 1/4" Roll Edge Guide
Includes UberLight™ Flex Sewing Light
Ships fully assembled, tested, and sewn-off
Includes a high-quality stand and table top.
Dimensions
Head Dimensions 21" x 10" x 7.5"
53.3 x 25.4 x 19 cm
Pallet Dimensions 48" x 40" x 39"
121.9 x 101.6 x 99.1cm
Operation
Stitch Length 0 - 8mm
Needle Bar Stroke 36mm
Needle System # 29 BL
Work Space 10" / 25.4cm
Lubrication Semi-automatic
Foot Lift 9mm
RPM 1200
Electrical 110V / 120V 60 Hz

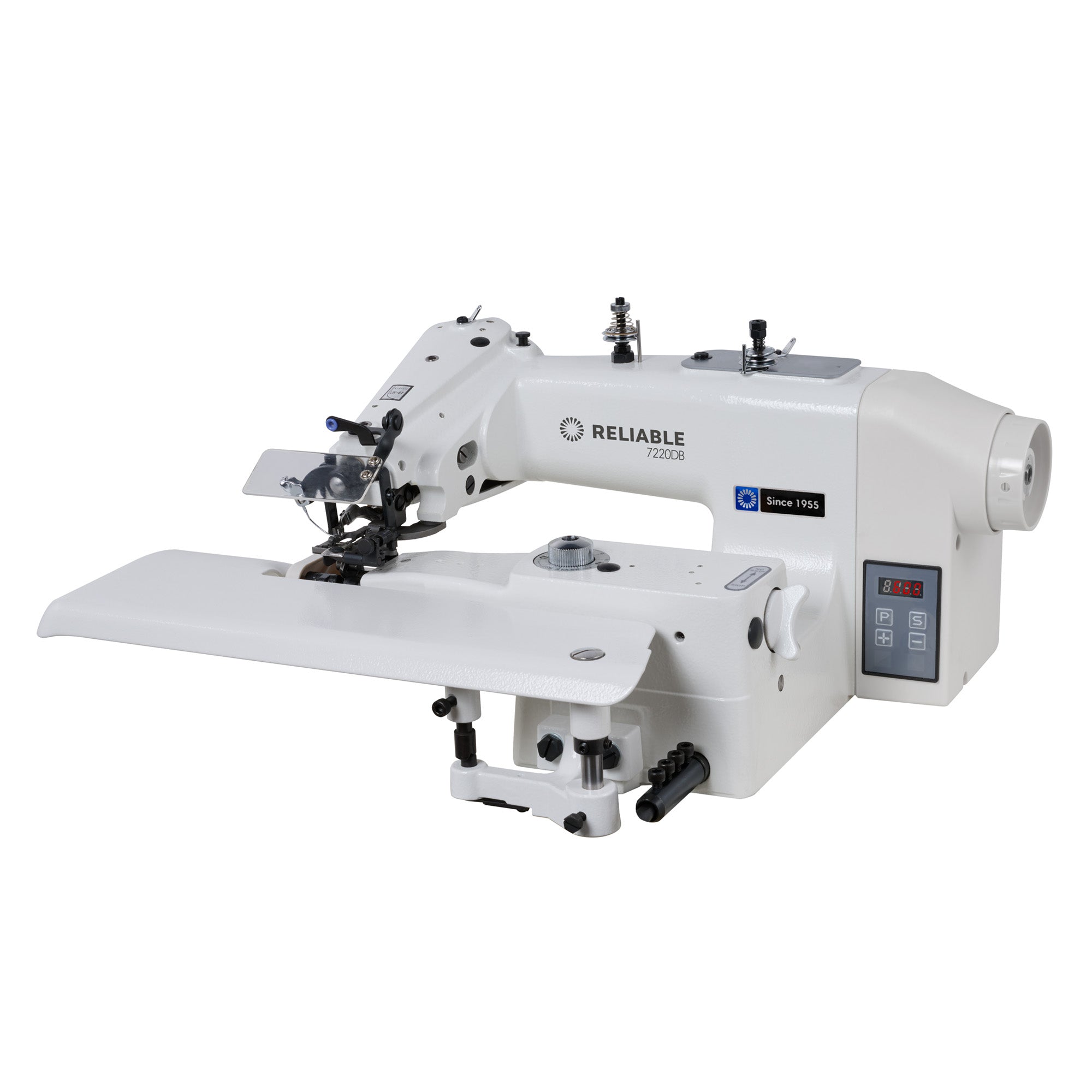

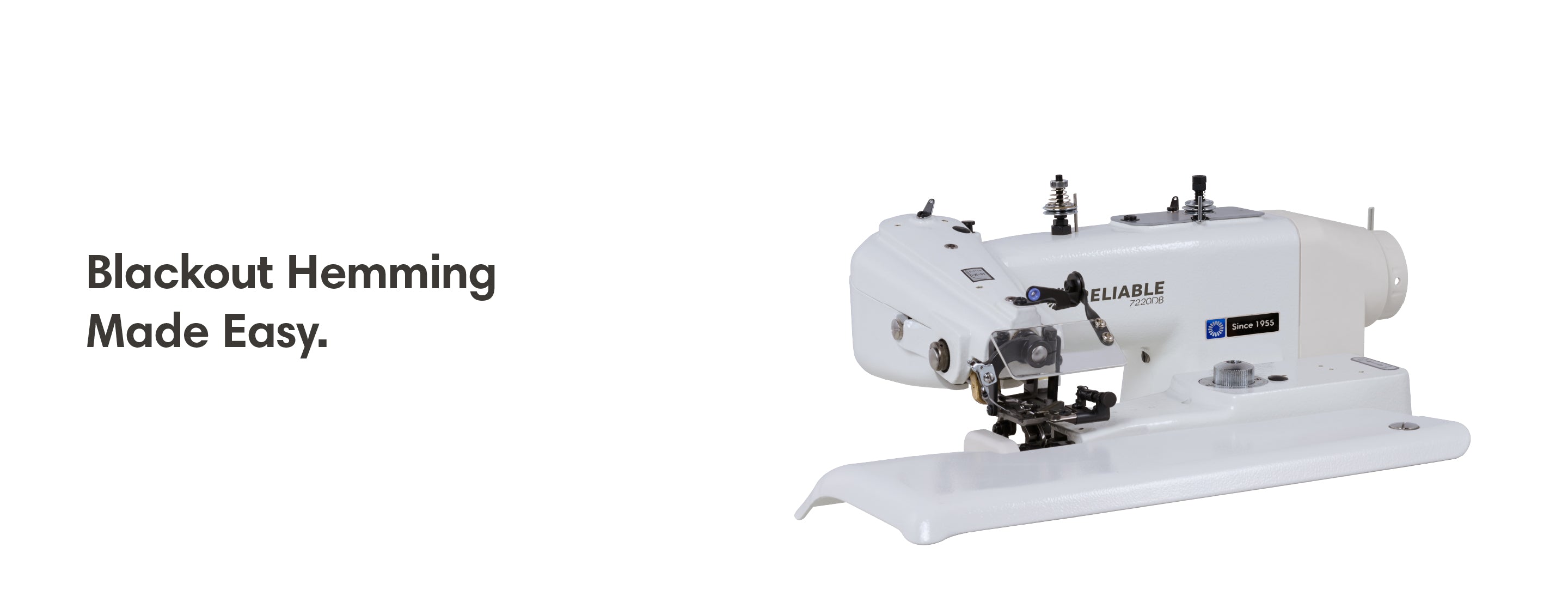

The all-new 7220DB Drapery Blind Stitch Hemming Machine with Direct Drive is the sewing industry benchmark for excellence in productivity, durability, and stitch quality. The skip stitch and adjustable stitch penetration on the 7220DB allow for precise and controlled sewing. With a thread nipping device for easier fabric removal, the 7220DB is made for drapery workrooms hemming medium to heavyweight fabrics, with or without blackout.
The direct drive motor delivers an exceptional user experience, providing precise stitch control, programmable needle positioning, index stitching, and digital speed adjustment. Smooth, quiet operation combined with advanced control features make the 7220DB the ideal choice for professionals who need power, accuracy, and reliability in a heavy-duty blind stitch hemming sewing machine.
*Shipped on a pallet. Freight will be calculated at checkout.
Features

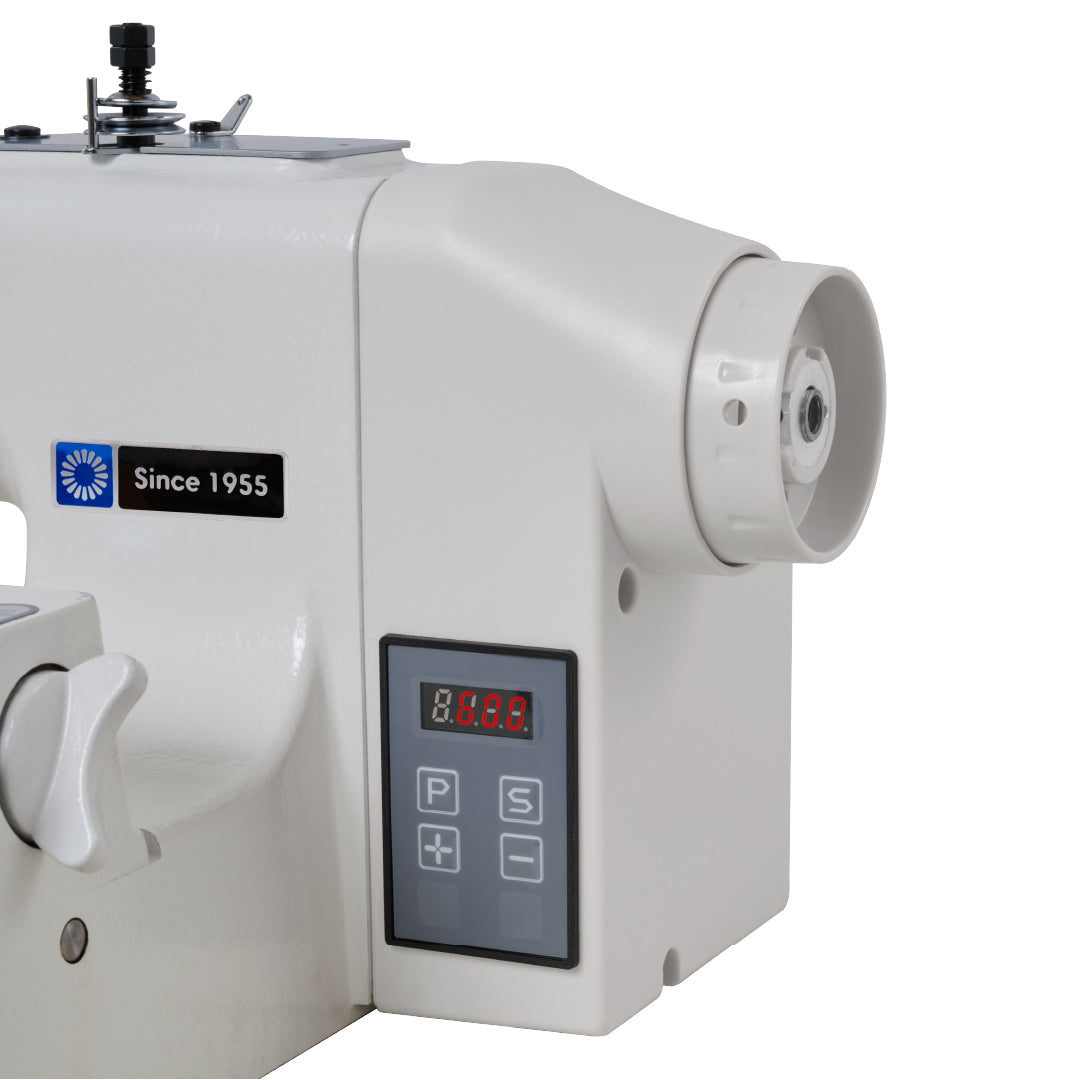

Built-In Synchronizer

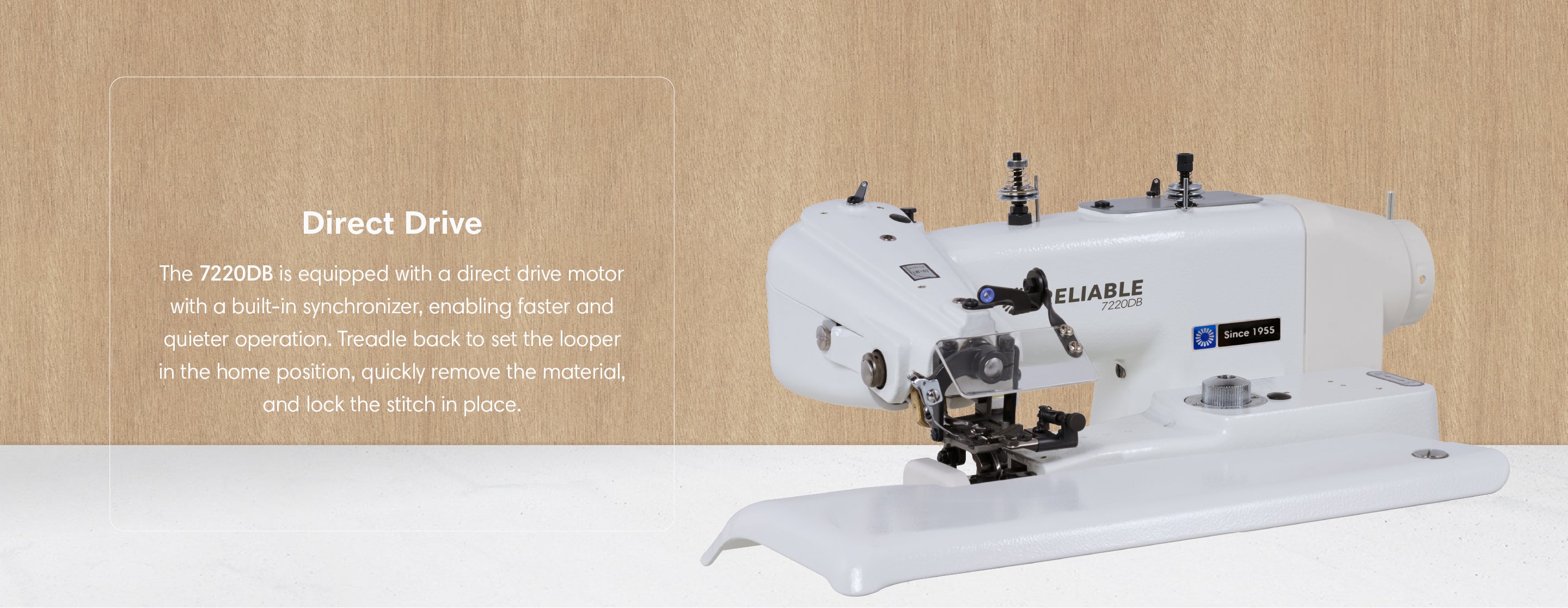

The 7220DB is equipped with a direct drive motor with a built-in synchronizer, enabling faster and quieter operation. Treadle back to set the looper in the home position to quickly remove material and lock the stitch in place.

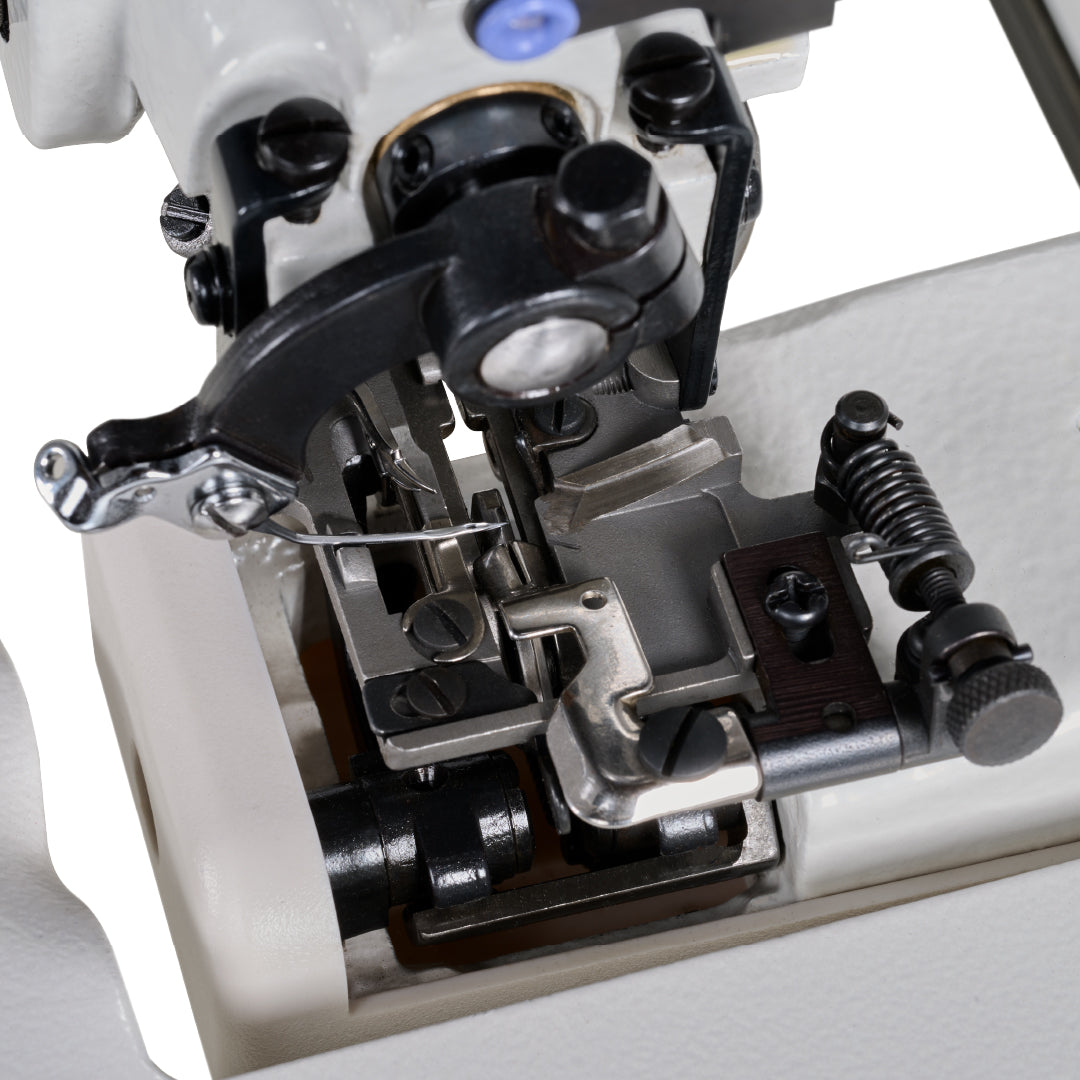

Plunger Drop
The solid frame construction on the 7220DB ensures less vibration and better stitch quality compared to frame drop type machines.

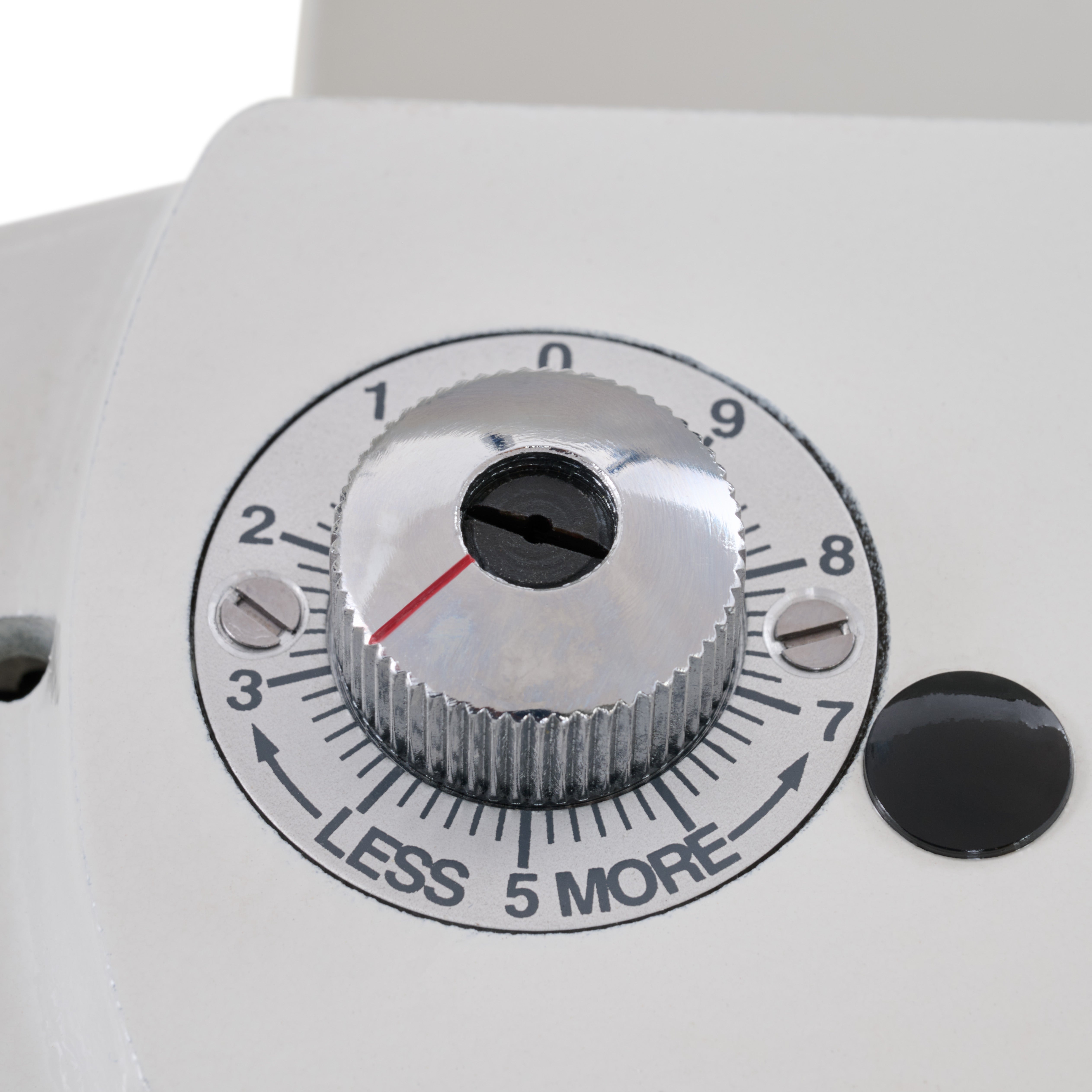

Adjustable Stitch Settings
The adjustable stitch setting dial allows the user to modify the depth of the needle penetration, ensuring that the stitch does not show on the outside of the fabric.
UberLight™ Flex LED Light
The perfect add on light is included at no extra charge for the 7220SB making it both a great blind stitch machine and a great value.

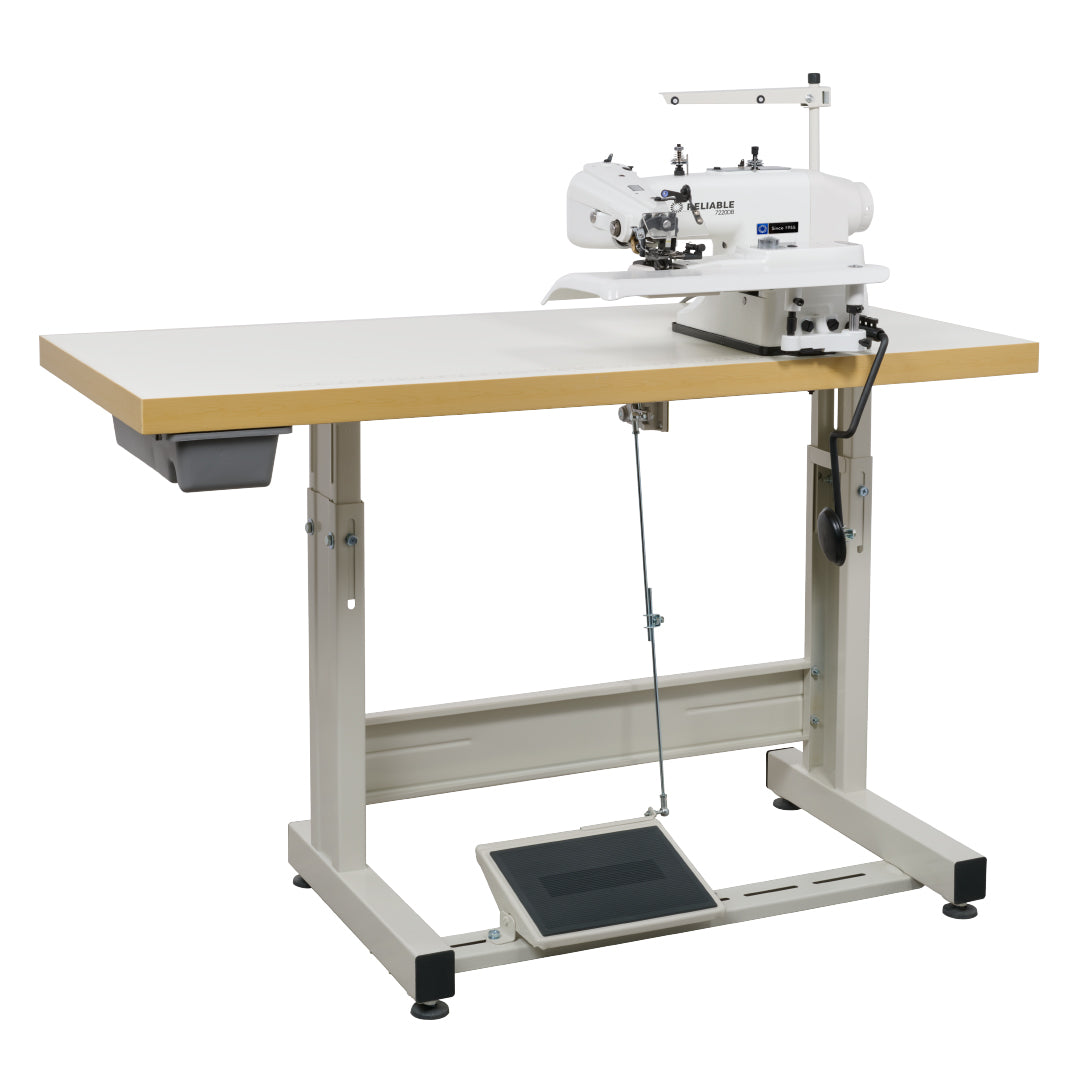

Superior Stand
Others skimp on the stand components, we don’t. We only use 100% plywood in our tabletops (not cheap particle board) and our legs are made from heavy-duty 3/32” steel.
